Flowise Chatbot Setup Guide — Linux/Ubuntu

Build a fully local AI-powered chatbot using Flowise, Ollama, and a Conversational Retrieval QA Chain with RAG (Retrieval-Augmented Generation).

---

Table of Contents

1. Prerequisites
2. Install Ollama
3. Pull Required Models
4. Install Flowise
5. Start Flowise
6. Import an Existing Flow
7. Build the Chatbot Flow
   • Step 1: Recursive Character Text Splitter
   • Step 2: Document Store (RAG)
   • Step 3: Ollama Embeddings
   • Step 4: Faiss Vector Store
   • Step 5: Ollama Chat Model
   • Step 6: Buffer Memory
8. Upsert Documents
9. Using Firecrawl (Scrape Websites into RAG)
10. Using Cloud LLM APIs (Optional)
11. Multilingual Support & Embeddings
    • How Language Works in the Pipeline
    • The Golden Rule of Embeddings
    • Choosing an Embedding Model
    • North African & Middle Eastern Users
12. Deploy Chatbot to Users

• Direct Link
• Embed in Website
• Session Management
• Rate Limiting

14. Troubleshooting

---

Prerequisites

• Ubuntu 20.04 or later
• At least 8GB RAM (16GB recommended)
• Node.js 18+
• Internet access for first-time model downloads

Install Node.js 18+

curl -fsSL https://deb.nodesource.com/setup_18.x | sudo -E bash -
sudo apt-get install -y nodejs
node -v   # should print v18.x.x or higher

---

Install Ollama

Ollama runs LLMs locally on your machine.

curl -fsSL https://ollama.com/install.sh | sh

Make Ollama Accessible on All Interfaces

By default, Ollama only listens on localhost. To allow Flowise (and other services) to reach it:

sudo systemctl edit ollama.service

Add the following inside the file:

[Service]
Environment="OLLAMA_HOST=0.0.0.0"

Save and restart:

sudo systemctl daemon-reload
sudo systemctl restart ollama

Verify it's running:

curl http://localhost:11434/api/tags

You should see a JSON response listing available models.

---

Pull Required Models

Chat Model (LLM)

ollama pull qwen2.5:3b        # lightweight, good for most use cases
# OR
ollama pull phi3:mini         # alternative lightweight model
# OR
ollama pull llama3:8b         # better quality, needs more RAM

Embedding Model

ollama pull nomic-embed-text  # required for RAG / vector search

(Optional) Vision Model — for image understanding

ollama pull llava             # allows users to upload screenshots

Verify all models are available:

ollama list

---

Install Flowise

npm install -g flowise

---

Start Flowise

npx flowise start
# OR
npx flowise start --PORT=3030 # set port

Flowise will start on http://localhost:3000

Run as a Background Service (Recommended for Production)

# Install PM2 process manager
npm install -g pm2

# Start Flowise with PM2
pm2 start "npx flowise start" --name flowise

# Auto-start on system reboot
pm2 startup
pm2 save

Set Username and Password (Recommended)

npx flowise start --FLOWISE_USERNAME=admin --FLOWISE_PASSWORD=yourpassword

Or with PM2:

pm2 start "npx flowise start --FLOWISE_USERNAME=admin --FLOWISE_PASSWORD=yourpassword" --name flowise

---

Import an Existing Flow

If you already have a chatflow exported as a .json file (e.g. Product Detection Q&A Chatflow.json), you can import it directly into Flowise instead of building from scratch.

Download the Flow File

Get the .json file from your repository:

# Using wget
wget -O "Product Detection Q&A Chatflow.json" \
  "http://145.239.66.197:3000/Hamza/Chatbot/raw/branch/main/Product%20Detection%20Q%26A%20Chatflow.json"

# OR using curl
curl -L -o "Product Detection Q&A Chatflow.json" \
  "http://145.239.66.197:3000/Hamza/Chatbot/raw/branch/main/Product%20Detection%20Q%26A%20Chatflow.json"

Note: The URL uses /raw/branch/ to get the raw file content, not the Gitea preview page.

Import into Flowise

1. Open Flowise at http://localhost:3000
2. On the Chatflows home page, click the Add New button (top right)
3. Instead of building from scratch, click the Load button (upload icon, top right of the canvas)
4. Select your Product Detection Q&A Chatflow.json file
5. The full flow will appear on the canvas automatically Alternatively, from the Chatflows home page:
6. Click the ⋮ (three dots) menu on any existing chatflow card
7. Select Duplicate — or use Import if available in your Flowise version

After Importing

The flow is ready but you need to reconfigure credentials since API keys and local paths don't transfer between machines:

Node	What to Reconfigure
Ollama / ChatOllama	Set Base URL to http://localhost:11434
Ollama Embeddings	Set Base URL to http://localhost:11434
Faiss	Set Base Path to /root/.flowise/vectorstore
Document Store	Re-upload or re-link your documents
Any API node	Re-enter API keys (OpenAI, Anthropic, etc.)

Create the Vector Store Directory

mkdir -p /root/.flowise/vectorstore

Upsert After Import

After reconfiguring, always run Upsert before chatting:

1. Click the Upsert button (top right of canvas)
2. Wait for success confirmation
3. Verify the index was created:

ls /root/.flowise/vectorstore/
# Expected: faiss.index  faiss.json

Export Your Flow (for sharing or backup)

To export your current flow as a .json file:

1. Open the chatflow in Flowise
2. Click the ⋮ (three dots) menu → Export
3. Save the .json file — commit it to your repository for teammates to import

---

Build the Chatbot Flow

Open Flowise at http://localhost:3000 → click Add New to create a new chatflow.

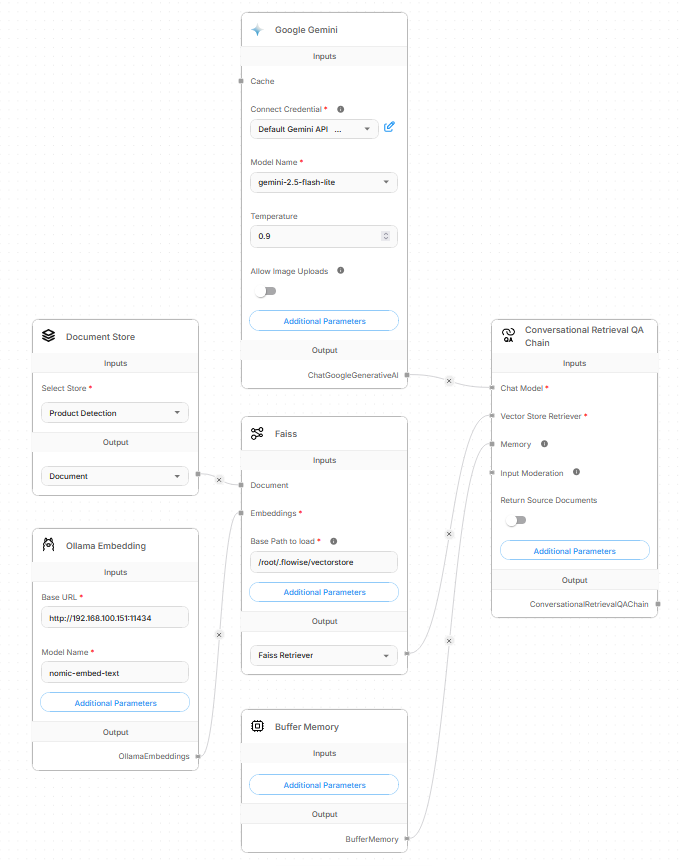

The final flow looks like this:

---

Step 1: Recursive Character Text Splitter

Search for "Recursive Character Text Splitter" in the nodes panel and drag it onto the canvas.

Setting	Recommended Value
Chunk Size	1000
Chunk Overlap	200

---

Step 2: Document Store (RAG)

Search for "Document Store" and drag it onto the canvas.

1. Click Select Store → Create New Store
2. Name it (e.g., Product Documentation)
3. Assign the Recursive Character Text Splitter to the Document Store
4. Add your documents:
   • Click the store → Add Document Loader
   • Choose a loader: Text File, PDF File, Docx File, etc.
   • Upload your knowledge base files
5. Connect the Document output of the Document Store to the Faiss node

What to put in your documents: Write plain text files or PDFs describing your software — features, FAQs, installation steps, error explanations, etc. The more detailed your docs, the better the chatbot answers.

---

Step 3: Ollama Embeddings

Search for "Ollama Embeddings" and drag it onto the canvas.

Setting	Value
Base URL	http://localhost:11434 (or your server IP)
Model Name	nomic-embed-text:latest

Connect the OllamaEmbeddings output to the Embeddings input of the Faiss node.

---

Step 4: Faiss Vector Store

Search for "Faiss" and drag it onto the canvas.

Setting	Value
Base Path to load	/root/.flowise/vectorstore (must be an existing directory)

Create the directory if it doesn't exist:

mkdir -p /root/.flowise/vectorstore

Connect:

• Document output from Document Store → Document input of Faiss
• OllamaEmbeddings → Embeddings input of Faiss

The Faiss Retriever output connects to the Vector Store Retriever input of the QA Chain.

---

Step 5: Ollama Chat Model

Search for "ChatOllama" or "Ollama" and drag it onto the canvas.

Setting	Value
Base URL	http://localhost:11434 (or your server IP)
Model Name	qwen2.5:3b
Temperature	0.7 (lower = more factual, higher = more creative)

Important: Use the exact model name with a colon, e.g. qwen2.5:3b not qwen2.5-3b.

Connect the ChatOllama output to the Chat Model input of the QA Chain.

---

Step 6: Buffer Memory

Search for "Buffer Memory" and drag it onto the canvas.

Setting	Value
Session ID	(leave empty — auto-uses the session ID passed by the user)
Memory Key	chat_history

Connect the BufferMemory output to the Memory input of the QA Chain.

Buffer Memory keeps conversation history so users can ask follow-up questions naturally. Note: Buffer Memory resets if Flowise restarts. For persistent memory across restarts, use Redis-Backed Memory or MongoDB Memory instead.

---

Upsert Documents

Before the chatbot can answer questions, you must index your documents into the vector store.

1. Click the Upsert button (top right of the canvas)
2. Wait for it to complete — you should see a success message
3. Verify the index files were created:

ls /root/.flowise/vectorstore/
# Expected output: faiss.index  faiss.json

Re-upsert every time you update or add documents to the Document Store.

---

Using Cloud LLM APIs (Optional)

If you prefer using cloud providers instead of (or in addition to) Ollama:

OpenAI

1. Get your API key at https://platform.openai.com/api-keys
2. In Flowise: Settings → API Keys → Add key
3. Replace the ChatOllama node with a ChatOpenAI node
4. Enter your API key and choose a model (e.g., gpt-4o)

Anthropic (Claude)

1. Get your API key at https://console.anthropic.com
2. Replace the ChatOllama node with a ChatAnthropic node
3. Enter your API key and choose a model (e.g., claude-sonnet-4-5)

Google Gemini

1. Get your API key at https://aistudio.google.com
2. Use the ChatGoogleGenerativeAI node
3. Enter your API key and model name (e.g., gemini-1.5-pro)

For Embeddings with cloud APIs: Replace Ollama Embeddings with OpenAI Embeddings or Google Generative AI Embeddings nodes, using the same API key setup.

---

Deploy Chatbot to Users

Direct Link

Share the chatbot link directly — no account needed for users:

http://your-server-ip:3000/chatbot/YOUR-FLOW-ID

Find your flow ID in the URL when editing the flow.

Users just open the link and start chatting immediately. No signup required.

---

Embed in Website

Paste this into any HTML page to show a chat bubble:

<script type="module">
  import Chatbot from "https://cdn.jsdelivr.net/npm/flowise-embed/dist/web.js"

  // Generate or reuse a session ID per user
  let sessionId = localStorage.getItem("chatSessionId");
  if (!sessionId) {
    sessionId = crypto.randomUUID();
    localStorage.setItem("chatSessionId", sessionId);
  }

  Chatbot.init({
    chatflowid: "YOUR-FLOW-ID",
    apiHost: "http://your-server-ip:3000",
    chatflowConfig: {
      sessionId: sessionId
    },
    theme: {
      button: {
        backgroundColor: "#your-brand-color",
        right: 20,
        bottom: 20,
      },
      chatWindow: {
        title: "Software Support",
        welcomeMessage: "Hello! How can I help you today?",
        height: 600,
        width: 400,
      }
    }
  })
</script>

Get your embed code from Flowise: open the flow → click the <> (Embed) button (top right).

---

Session Management

Each user needs an isolated session to prevent seeing each other's conversation history.

Scenario	Behavior
No sessionId set	All users share memory — dangerous
Unique sessionId per user	Fully isolated conversations
Using your own auth system	Pass your user's ID as the sessionId

// If users are logged into your system, use their user ID
sessionId: currentUser.id  // e.g. "user_12345"

// For anonymous users, use localStorage (persists across page refreshes)
sessionId: localStorage.getItem("chatSessionId") || (() => {
  const id = crypto.randomUUID();
  localStorage.setItem("chatSessionId", id);
  return id;
})()

---

Rate Limiting

Limit how many messages a user can send to protect your server.

1. Open your flow in Flowise
2. Click ⚙️ Configuration (top right)
3. Go to the Rate Limiting tab
4. Configure:

Setting	Example Value
Message Limit	20
Duration (seconds)	60
Limit Message	"Too many messages. Please wait a moment."

This limits each IP address to 20 messages per 60 seconds.

---

Using Firecrawl (Scrape Websites into RAG)

Firecrawl lets you scrape entire websites and feed the content directly into your Document Store as a knowledge base. This is useful if your software documentation lives on a website or wiki.

---

What Firecrawl Does

Your website / docs URL
        ↓
  Firecrawl crawls all pages
        ↓
  Returns clean Markdown text
        ↓
  Loaded into Document Store
        ↓
  Indexed into Faiss for RAG

---

Option A: Firecrawl Cloud (Easiest)

1. Sign up at https://firecrawl.dev
2. Get your API key from the dashboard
3. Add the API key to Flowise:
   • Go to Settings → API Keys → Add Credential
   • Choose Firecrawl API and paste your key

---

Option B: Self-Host Firecrawl (No API Cost)

If you want to keep everything local and free:

Requirements

# Install Docker and Docker Compose
sudo apt-get install -y docker.io docker-compose

Setup

# Clone Firecrawl repository
git clone https://github.com/mendableai/firecrawl.git
cd firecrawl

# Copy environment file
cp .env.example .env

Edit the .env file:

nano .env

Set these values at minimum:

NUM_WORKERS_PER_QUEUE=8
PORT=3002
HOST=0.0.0.0
REDIS_URL=redis://redis:6379
PLAYWRIGHT_MICROSERVICE_URL=http://playwright-service:3000/scrape

Start Firecrawl:

docker-compose up -d

Verify it's running:

curl http://localhost:3002/v1/scrape \
  -H "Content-Type: application/json" \
  -d '{"url": "https://example.com"}'

Your self-hosted Firecrawl API is now at http://localhost:3002

---

Multilingual Support & Embeddings

How Language Works in the Pipeline

Your chatbot has two separate language-handling stages that behave differently:

Stage	Component	What it Does
Retrieval	Embedding model + Faiss	Finds relevant doc chunks
Generation	LLM (Gemini, Ollama, etc.)	Writes the answer

The LLM (Gemini 2.5 Flash, qwen2.5, etc.) is naturally multilingual — it will respond in whatever language the user writes in. The weak point is always retrieval: if the embedding model can't match a French or Arabic query to English docs, the LLM receives empty context and responds with "I am not sure."

User asks in Arabic
      ↓
Embedding model converts query to vector
      ↓
Faiss searches English docs → poor match → returns nothing
      ↓
LLM receives empty context → "Hmm, I am not sure" ❌

---

The Golden Rule of Embeddings

The model used during Upsert MUST be the same model used during Chat.

Each embedding model has its own internal "language" for converting text to vectors. They are not compatible with each other.

Upsert with nomic-embed-text:
"product warranty" → [0.23, 0.87, 0.12, ...]

Chat query with text-embedding-004:
"product warranty" → [0.91, 0.04, 0.67, ...]

Faiss compares these → completely different → no match ❌

If you switch embedding models you must delete the old index and re-upsert:

rm /root/.flowise/vectorstore/faiss.index
rm /root/.flowise/vectorstore/faiss.json
# Then hit Upsert again in Flowise

---

Choosing an Embedding Model

Model	Where	Arabic	French	Darija	Code-switching
nomic-embed-text	Ollama	⚠️ Partial	✅ Good	❌ Poor	❌ Poor
mxbai-embed-large	Ollama	✅ Good	✅ Good	⚠️ Partial	⚠️ Partial
bge-m3	Ollama	✅ Excellent	✅ Excellent	⚠️ Partial	✅ Best local
text-embedding-004	Google API	✅ Good	✅ Good	⚠️ Partial	⚠️ Partial
text-embedding-3-small	OpenAI API	✅ Good	✅ Good	⚠️ Partial	⚠️ Partial
multilingual-e5-large	Ollama	✅ Excellent	✅ Excellent	⚠️ Partial	✅ Best local

Recommendation: Switch to bge-m3 for the best multilingual retrieval without any API cost:

ollama pull bge-m3

Then update the Ollama Embeddings node model name to bge-m3:latest, delete the old index, and re-upsert.

---

North African & Middle Eastern Users

North African users (Algeria, Morocco, Tunisia) often write in code-switched messages mixing Arabic dialect (Darija) with French in the same sentence:

"كيفاش نdir la configuration?"
"le produit مايخدمش properly"
"comment تاع l'installation?"

This is called code-switching and no embedding model handles it perfectly — Darija is underrepresented in all training datasets. Use a combination of strategies:

Strategy 1: System Prompt (Do This First)

In Conversational Retrieval QA Chain → Additional Parameters → System Message:

You are a helpful product support assistant for North African users.
Users may write in Arabic (Modern Standard or Darija dialect),
French, or a mix of both languages in the same message.

When you receive a message:
1. Understand it regardless of the language mix
2. Answer in the same language(s) the user wrote in
3. If the retrieved context is insufficient, use your general
   knowledge to help the user as best as possible
4. Never respond with "I am not sure" without first attempting
   to answer based on your knowledge

Your LLM (especially Gemini) understands Darija + French mixing very well — this prompt prevents it from giving up when retrieval returns weak results.

Strategy 2: Add Mixed-Language Content to Your Docs

Write a FAQ section in your Document Store using the way your users actually type:

كيفاش نinstalli le produit؟ / Comment installer le produit?
→ Go to Settings → Install → follow the steps...

le produit مايخدمش / Le produit ne fonctionne pas
→ First check that your internet connection is active...

واش فيه version جديدة؟ / Y a-t-il une nouvelle version?
→ Check the Updates section in your dashboard...

This ensures even a weaker embedding model can match queries because the vocabulary overlaps directly with the docs.

Strategy 3: Switch to bge-m3 (Best Local Option)

ollama pull bge-m3

bge-m3 is trained on 100+ languages with strong cross-lingual alignment. It handles mixed-language sentences better than any other locally available model.

Combined Recommended Setup for North Africa

1. Pull bge-m3:        ollama pull bge-m3
2. Update Ollama Embeddings node → model: bge-m3:latest
3. Add the system prompt above to your QA Chain
4. Add Darija/French mixed FAQ to your Document Store
5. Delete old index:   rm /root/.flowise/vectorstore/faiss.*
6. Re-upsert

---

❌ Bot Says "I am not sure" in Other Languages

This is a retrieval failure, not an LLM failure. Debug it in order:

1. Check your system prompt is set — the LLM needs permission to answer from its own knowledge when context is thin.

2. Check your embedding model — if you're using nomic-embed-text with non-English queries, switch to bge-m3.

3. Verify the index exists after re-upserting:

ls /root/.flowise/vectorstore/
# Must show: faiss.index  faiss.json

4. Add multilingual content to your docs — even a few translated FAQ entries dramatically improve retrieval for those languages.

---

Troubleshooting

❌ fetch failed when chatting

Cause: Flowise cannot reach Ollama.

Fix:

# Verify Ollama is reachable
curl http://localhost:11434/api/tags

# Check Ollama is running
systemctl status ollama

# Check model name is correct (must use colon, not dash)
# ✅ qwen2.5:3b
# ❌ qwen2.5-3b
ollama list

---

❌ Cannot read properties of undefined (reading 'startsWith')

Cause: The Base Path to load field in the Faiss node is empty.

Fix:

1. Click the Faiss node
2. Fill in Base Path to load: /root/.flowise/vectorstore
3. Create the directory: mkdir -p /root/.flowise/vectorstore
4. Re-upsert

---

❌ could not open faiss.index for reading

Cause: Upsert was never completed successfully — the index file doesn't exist.

Fix:

# Check if the file exists
ls /root/.flowise/vectorstore/

# If empty, fix the Base Path issue above, then Upsert again

---

❌ Ollama model not found

Cause: Model name is wrong or model was never pulled.

Fix:

# List available models
ollama list

# Pull the missing model
ollama pull qwen2.5:3b
ollama pull nomic-embed-text:latest

# Always use colon format in Flowise: qwen2.5:3b not qwen2.5-3b

---

❌ Flowise crashes or won't start

Fix:

# Check Node.js version (must be 18+)
node -v

# Clear Flowise cache
rm -rf ~/.flowise/cache

# Check port 3000 is not already in use
sudo lsof -i :3000

# Restart with PM2
pm2 restart flowise
pm2 logs flowise

---

❌ Out of memory / model too slow

Fix:

# Check available RAM
free -h

# Use a smaller model
ollama pull phi3:mini   # 3.8B — lighter than qwen2.5:3b

# Check what's loaded in Ollama
ollama ps

If RAM is under 8GB, use phi3:mini or qwen2.5:3b (both under 4GB).

---

❌ Bot answers incorrectly or doesn't use documents

Cause: Documents are not properly indexed, or chunks are too small/large.

Fix:

1. Make sure you clicked Upsert after adding documents
2. Verify faiss.index and faiss.json exist in the Base Path
3. Try increasing Chunk Size to 1500 and re-upsert
4. Make sure your documents are in plain text, not scanned images

---

❌ Users share each other's conversation history

Cause: No sessionId is being passed, or all users get the same ID.

Fix: Use the embed code with a unique sessionId per user (see Session Management).

---

Quick Reference

Component	Purpose
Ollama	Runs LLMs locally
nomic-embed-text	Converts text to vectors for search
Faiss	Stores and searches vectors
Document Store	Manages your knowledge base files
Recursive Text Splitter	Breaks documents into searchable chunks
Buffer Memory	Remembers conversation history per user
Conversational Retrieval QA Chain	Ties everything together

Port	Service
3000	Flowise UI and API
11434	Ollama API

---

Built with Flowise + Ollama. All models run locally — no data leaves your server.
