Product Detection & Classification Pipeline

A two-stage computer vision pipeline that combines a fine-tuned YOLOv8n detector with a EfficientNet classifier to detect and identify products on retail shelves.

Shelf image → YOLOv8n (detect) → EfficientNet (classify) → labelled bounding boxes

---

Table of Contents

1. Project Structure
2. Installation
3. Pipeline Overview
4. Step-by-step Guide
   • Step 1 — Generate crops
   • Step 2 — Auto-label & Review
   • Step 3 — Split the dataset
   • Step 4 — Train the classifier
   • Step 5 — Run inference
5. API Server
6. Script Reference
7. Troubleshooting
8. Tips & Best Practices

---

1. Project Structure

project/
│
├── detector/
│   └── best.pt                  ← your fine-tuned YOLOv8n weights
│
├── runs/classify/
│   ├── best.pt                  ← trained classifier weights (output of step 4)
│   ├── last.pt
│   ├── class_names.json         ← {index: class_name} mapping
│   ├── training_curves.png

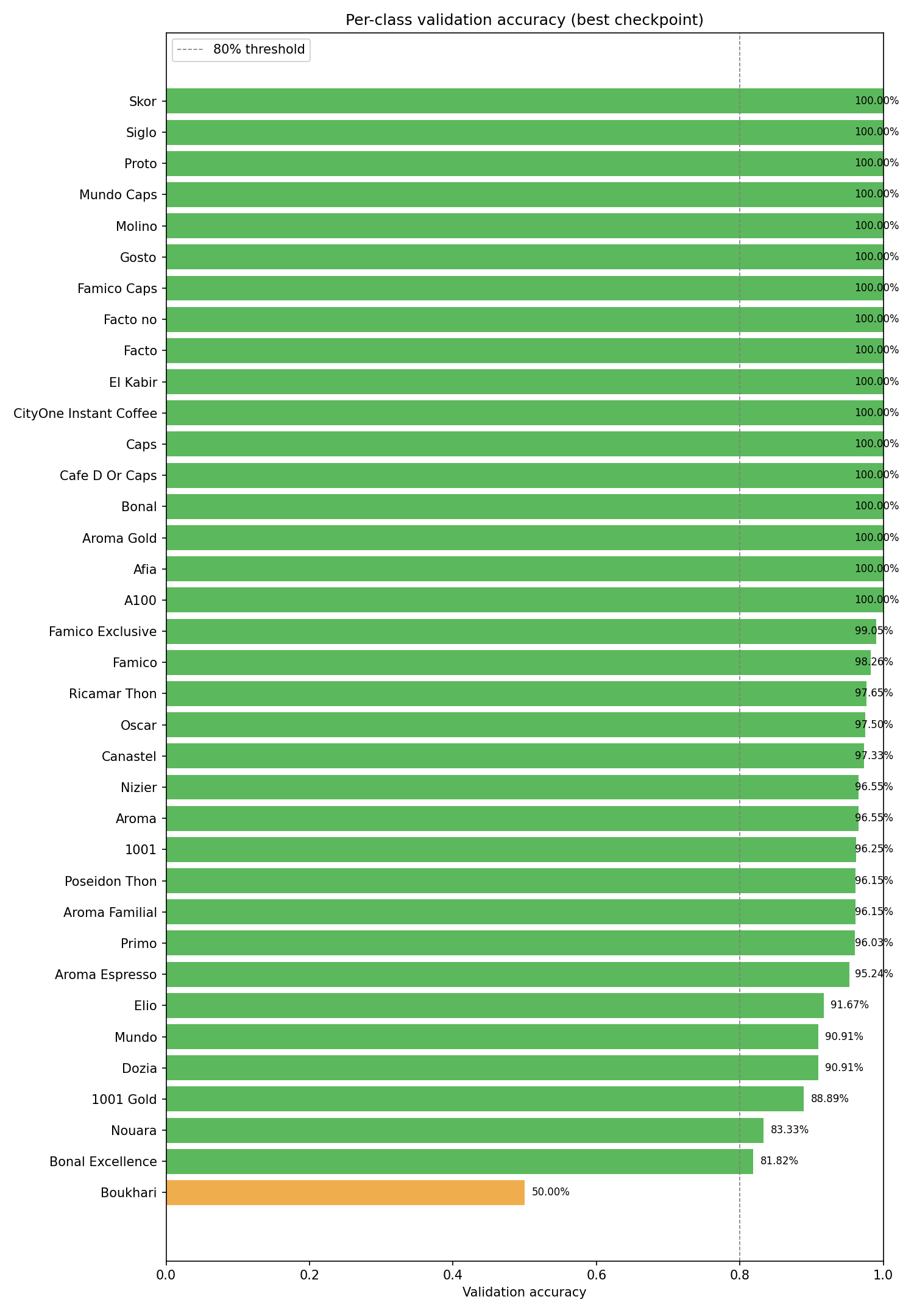

│   ├── per_class_accuracy.png

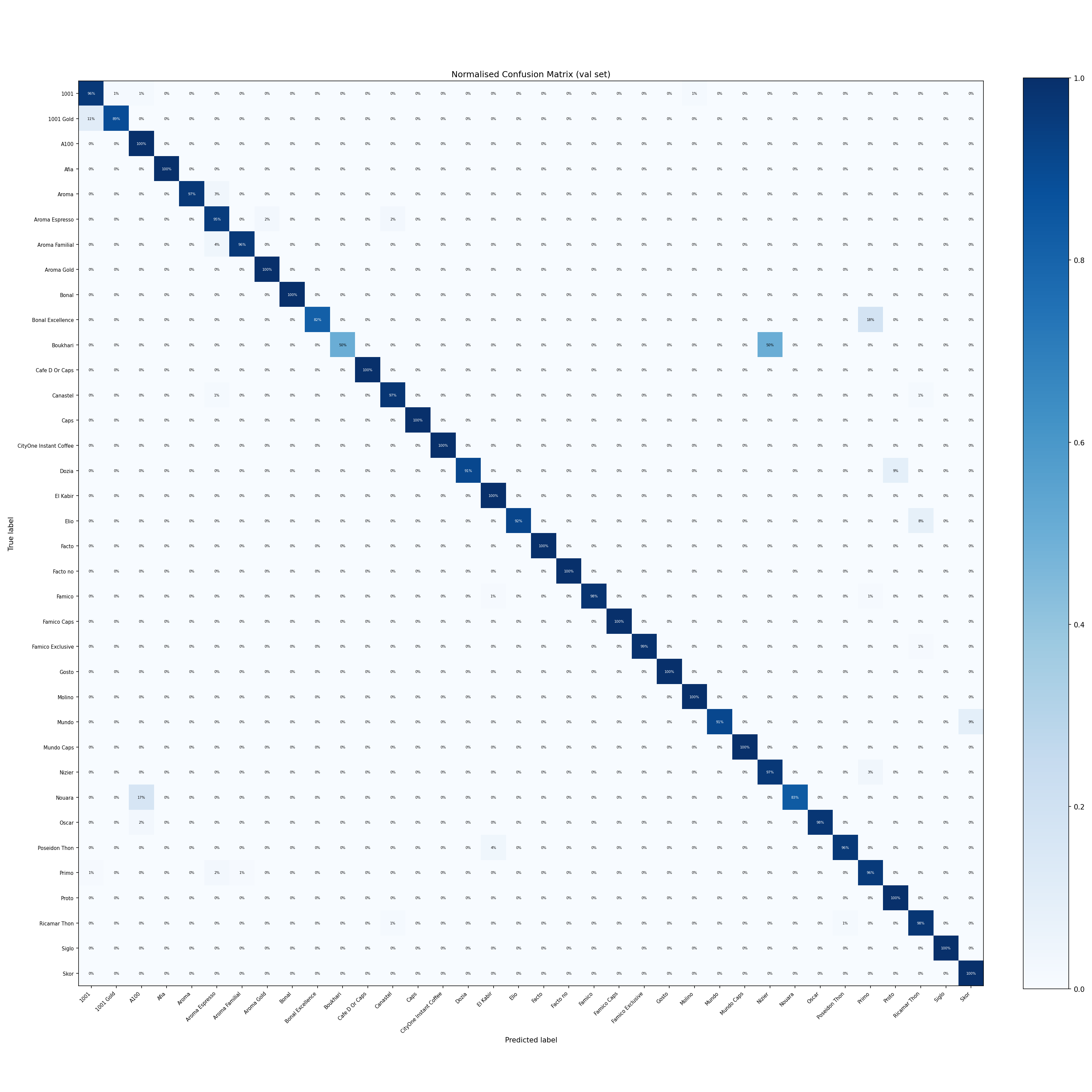

│   └── confusion_matrix.png
│
├── data/                        ← labelled crops (built incrementally)
│   ├── cola_can/
│   ├── pepsi_can/
│   ├── _rejected_/              ← crops you rejected during review
│   └── _unreviewed_/            ← crops you skipped during review
│
├── crops_dataset/               ← final train/val/test split (input to training)
│   ├── train/
│   ├── val/
│   └── test/
│
├── 1_generate_crop_dataset.py   ← detect & crop (no classifier needed)
├── auto_label.py                ← detect + auto-classify + browser review UI
├── 1b_split_dataset.py          ← stratified train/val/test splitter
├── 2_train_classifier.py        ← train EfficientNet classifier
├── 3_inference.py               ← end-to-end detect + classify on new images
├── api_server.py                ← FastAPI polling server
├── balance_and_augment.py       ← balance classes + generate augmented images
├── kaggle_train.py              ← automate Kaggle upload + training + download
└── train_classifier_kaggle.ipynb

---

2. Installation

The project uses a Conda environment for reproducible dependency management.

Create the environment

conda env create -f environment.yml
conda activate product-detection

environment.yml

name: product-detection
channels:
  - conda-forge
dependencies:
  - python=3.10
  - numpy<2
  - pip
  - pip:
      - torch
      - torchvision
      - opencv-python
      - ultralytics
      - pillow==10.0.0
      - tqdm
      - pyyaml
      - simsimd
      - albumentations
      - faiss-cpu
      - fastapi
      - uvicorn[standard]
      - flask

GPU users

torch and torchvision are installed as CPU builds by default via pip inside conda. To use a GPU, replace the torch and torchvision lines in the yml with the CUDA-enabled builds before creating the environment:

    - torch==2.3.0+cu121
    - torchvision==0.18.0+cu121
    --extra-index-url https://download.pytorch.org/whl/cu121

Or install them manually after environment creation:

conda activate product-detection
pip install torch torchvision --index-url https://download.pytorch.org/whl/cu121

Update an existing environment

If environment.yml changes, sync the existing environment without recreating it:

conda env update -f environment.yml --prune

---

3. Pipeline Overview

There are two ways to build your dataset depending on whether you already have a trained classifier:

┌─────────────────────────────────────────────────────────────────┐
│  PATH A — First time (no classifier yet)                        │
│                                                                 │
│  1_generate_crop_dataset.py  →  label manually  →              │
│  1b_split_dataset.py  →  2_train_classifier.py                  │
└─────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────┐
│  PATH B — You already have a classifier (recommended after v1)  │
│                                                                 │
│  auto_label.py  →  review in browser  →                        │
│  1b_split_dataset.py  →  2_train_classifier.py                  │
└─────────────────────────────────────────────────────────────────┘

Once you have a working classifier, always use Path B. It is faster, more accurate, and requires far less manual labelling work.

---

4. Step-by-step Guide

Step 1 — Generate crops

Use this step if you are starting from scratch with no classifier yet. If you already have runs/classify/best.pt, skip to Step 2.

Runs YOLOv8n on your shelf images and saves every detection as a cropped JPEG into data/unknown/. No classification happens here — you label manually afterwards.

python 1_generate_crop_dataset.py \
    --source     shelf_images/ \
    --weights    detector/best.pt \
    --output_dir data \
    --conf       0.25 \
    --padding    10 \
    --min_size   32

Argument	Default	Description
--source	required	Image file, folder, or glob pattern
--weights	required	YOLOv8n .pt file
--output_dir	data	Root folder — crops go into <output_dir>/unknown/
--conf	0.25	Detection confidence threshold
--iou	0.45	NMS IoU threshold
--padding	10	Extra pixels added around each crop
--min_size	32	Discard crops smaller than this (px)
--save_labels	off	Save a .txt sidecar with YOLO class info

After this step, move crops from data/unknown/ into named class folders:

data/
    unknown/          ← before
    cola_can/         ← after (you create these)
    pepsi_can/
    lays_chips/

Use any file manager, or a tool like Label Studio for faster annotation.

---

Step 2 — Auto-label & Review

Use this step once you have a trained classifier. It replaces manual labelling almost entirely.

Runs the full detect → crop → classify pipeline in one command, then opens a browser UI where you review, confirm, fix, or reject each prediction.

python auto_label.py \
    --source             shelf_images/ \
    --detector_weights   detector/best.pt \
    --classifier_weights runs/classify/best.pt \
    --output_dir         data \
    --cls_conf           0.50

Argument	Default	Description
--source	required	Image file, folder, or glob
--detector_weights	required	YOLOv8n .pt
--classifier_weights	required	Classifier best.pt
--output_dir	data	Where confirmed crops are written
--det_conf	0.25	Detection threshold
--cls_conf	0.50	Min classifier confidence to auto-label
--port	5000	Browser UI port

The browser opens automatically at http://localhost:5000.

Review UI controls

Action	How
Open crop detail	Click a card
Confirm prediction	C key or Confirm button
Reject crop	R key or Reject button
Override the class	Pick from dropdown → Apply override
Navigate crops	← → arrow keys
Close modal	Esc
Multi-select	Ctrl+click or Shift+click
Bulk confirm/reject/reclassify	Select multiple → use bulk bar
Confirm all visible	✓ Confirm all visible button
Filter by class	Click a class in the left sidebar
Filter by status	Toggle buttons in toolbar
Filter by confidence	Drag the min-conf slider

Status meanings

Status	Meaning
auto	Classifier's prediction, not yet reviewed
confirmed	You agreed with the prediction
reclassified	You changed it to a different class
rejected	Not a useful crop (bad detection, not a product of interest)

Committing

Click Commit dataset → to write all crops to data/:

data/
    cola_can/       ← confirmed + reclassified
    pepsi_can/
    _rejected_/     ← rejected crops (kept for reference)
    _unreviewed_/   ← anything still "auto" when you committed

Important: Commit is always additive. It never deletes existing files in data/. Running auto_label.py on new shelf images simply grows the dataset. The only exception: if you run it twice on the exact same source image, crop files are overwritten (same content, so this is harmless).

---

Step 3 — Split the dataset

Splits data/ into train/, val/, and test/ using a stratified strategy — every class gets the same ratio across all splits, so rare classes are not accidentally lost.

python 1b_split_dataset.py \
    --data_dir   data \
    --output_dir crops_dataset \
    --val_split  0.15 \
    --test_split 0.05

Argument	Default	Description
--data_dir	required	Labelled data root (subfolders = classes)
--output_dir	crops_dataset	Where to write train/val/test
--val_split	0.15	Fraction for validation
--test_split	0.05	Fraction for test (0 to skip)
--move	off	Move files instead of copying (saves disk space)
--min_per_class	2	Warn if a class has fewer images than this after splitting

Automatically skipped folders:

• unknown/, train/, val/, test/
• Any folder whose name starts with _ (e.g. _rejected_, _unreviewed_, _ignore_)

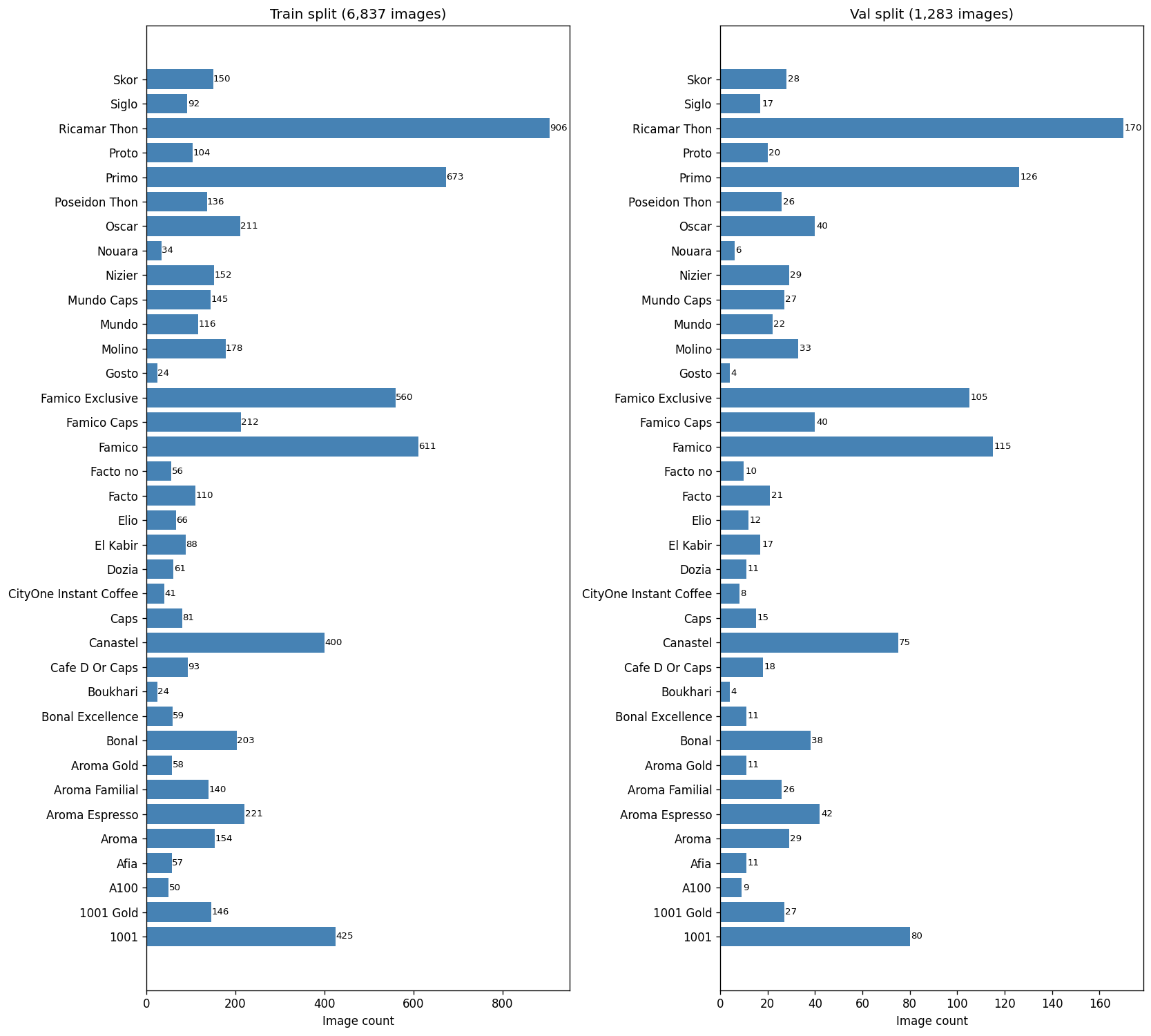

The splitter prints a table so you can spot imbalanced or thin classes before training:

────────────────────────────────────────────────────────
  Class                          Train     Val    Test
────────────────────────────────────────────────────────
  cola_can                          72      13       5
  pepsi_can                         58      10       4
  lays_chips                        12       2  ⚠ val<5
────────────────────────────────────────────────────────
  TOTAL                            142      25       9

Recommended minimums: ≥ 50 training images and ≥ 10 val images per class. Classes below these thresholds should get more data before training.

---

Step 3b — Balance & augment the dataset

Optional but strongly recommended when classes have unequal image counts or any class has fewer than 50 training images.

Analyses the train/ split, calculates how many images each class needs to reach a target count, then generates augmented copies using a three-tier albumentations pipeline until every class is balanced.

python balance_and_augment.py     --data_dir     crops_dataset     --split        train     --max_scale    2.0     --workers      8     --dry_run

Remove --dry_run once you are happy with the plan.

Argument	Default	Description
--data_dir	crops_dataset	Root with train/ val/ test/ subfolders
--split	train	Which split to augment
--target_count	auto	Explicit target per class — omit to use auto
--max_scale	2.0	Auto target = largest class × this factor
--min_count	0.95	Skip classes already within 5 % of target
--workers	cpu − 1	Parallel workers
--dry_run	off	Print the plan without writing files
--val_split	0.0	Fraction of augmented images also copied to val/
--suffix	_aug	Filename suffix added to augmented images
--quality	92	JPEG save quality

Dry-run output example:

──────────────────────────────────────────────────────────
  Class                     Current    Target    To add  Status
──────────────────────────────────────────────────────────
  cola_can                       72       200       128  + 128  ████████████
  lays_chips                     18       200       182  + 182  ██
  pepsi_can                      58       200       142  + 142  ██████
  siglo                         204       200         0  ✓ ok   ████████████████████
──────────────────────────────────────────────────────────
  TOTAL                         352                 452
──────────────────────────────────────────────────────────

Three-tier augmentation pipeline:

Tier	Transforms	Probability
Light (always)	HorizontalFlip, ShiftScaleRotate ±15°, BrightnessContrast ±30%, HueSaturation	75–85% each
Medium (random subset)	Perspective, GridDistortion, ElasticTransform, Blur/Sharpen, GaussNoise, CoarseDropout (occlusion), JPEG compression	25–40%
Heavy (rare)	RandomShadow, RandomSunFlare, RandomFog, ChannelShuffle, RGBShift	8–15%

Augmented files are written beside the originals in the same class folder. Originals are never modified or deleted.

When to use --val_split: Pass --val_split 0.10 to also copy 10% of the augmented images into val/ if your val set is very small (< 5 images per class). For most cases, leave it at 0 — val should represent real unaugmented images.

---

Step 3b — recommended workflow

# 1. Preview the plan
python balance_and_augment.py --data_dir crops_dataset --dry_run

# 2. Run with auto target (largest class × 2)
python balance_and_augment.py --data_dir crops_dataset --workers 8

# 3. Or set an explicit target
python balance_and_augment.py --data_dir crops_dataset --target_count 300

---

Step 4 — Train the classifier

Trains an EfficientNet-B0 (ImageNet pre-trained) on crops_dataset/. A WeightedRandomSampler is used automatically so class imbalance does not bias training.

python 2_train_classifier.py \
    --data_dir  crops_dataset \
    --model     efficientnet_b0 \
    --epochs    50 \
    --batch_size 64 \
    --amp

Argument	Default	Description
--data_dir	required	Root with train/ and val/
--output_dir	runs/classify	Where checkpoints are saved
--model	efficientnet_b0	efficientnet_b0, efficientnet_b2, mobilenet_v3_small, resnet50
--epochs	50	Max training epochs
--batch_size	64	Batch size
--img_size	224	Input resolution
--lr	1e-3	Learning rate
--patience	10	Early stopping patience
--amp	off	Enable Automatic Mixed Precision (GPU only)
--freeze_backbone	off	Only train the head — recommended when you have fewer than ~50 images per class

Outputs saved to runs/classify/:

File	Description
best.pt	Best checkpoint by val accuracy
last.pt	Last epoch checkpoint
class_names.json	{index: class_name} used by inference and API

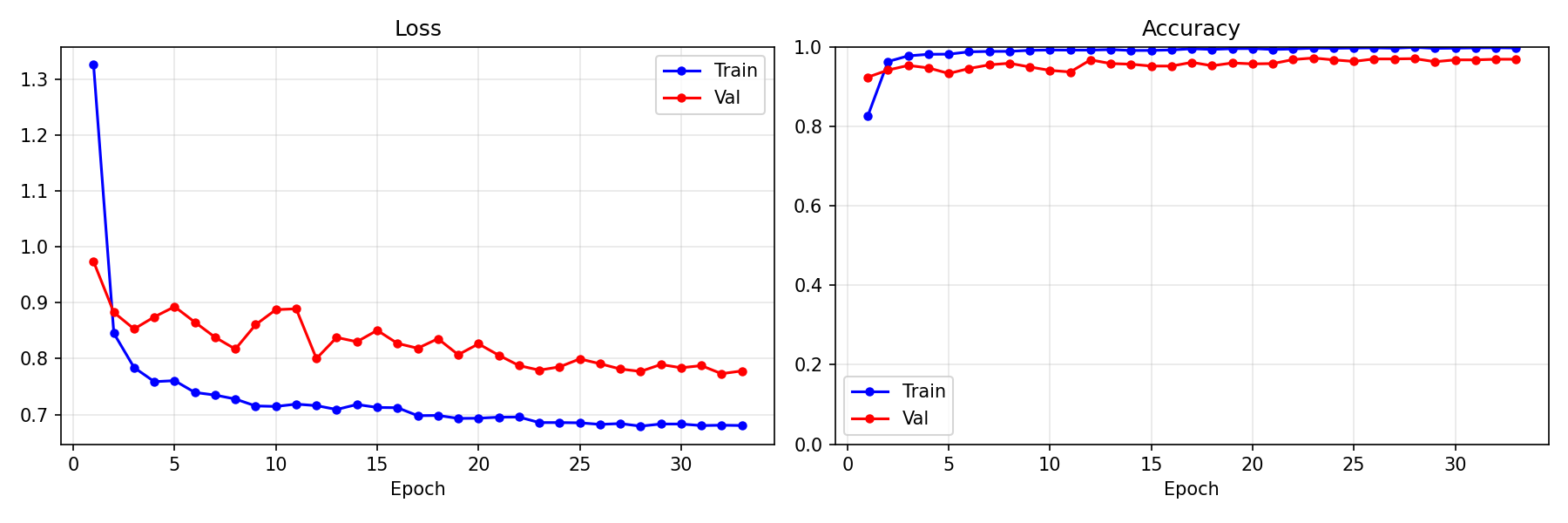

training_curves.png	Loss & accuracy plot

Option B — Kaggle notebook (recommended for free GPU access)

train_classifier_kaggle.ipynb is a self-contained notebook version of the training script, designed to run on Kaggle's free T4 GPU with no local hardware required.

Setup steps:

1. Zip your crops_dataset/ folder and upload it as a Kaggle Dataset:

   • Go to kaggle.com/datasets → New Dataset
   • Upload the zip, give it a name (e.g. my-product-crops)
   • Wait for processing to complete

   Note: Don't need to create New Dataset you just need to update it from here

2. Create a new Kaggle Notebook:

   • Go to kaggle.com/code → New Notebook
   • Upload train_classifier_kaggle.ipynb via File → Import Notebook

3. Attach your dataset:

   • In the right panel click + Add Data
   • Search for your dataset name and attach it
   • It will appear at /kaggle/input/my-product-crops/

4. Enable the GPU:

   • Right panel → Session options → Accelerator → GPU T4 x1

5. Edit Cell 2 — Configuration only:

   DATA_DIR = Path("/kaggle/input/my-product-crops")  # ← your dataset path
   MODEL_NAME  = "efficientnet_b0"
   EPOCHS      = 50
   BATCH_SIZE  = 64


6. Run All (Shift+Enter through all cells, or Run All from the menu)

What the notebook does beyond the plain script:

Cell	Extra feature
Cell 2b	Dataset diagnostics — prints per-class counts, flags classes with < 20 images, prints random-chance loss baseline
Cell 4	Class distribution bar chart
Cell 5	Augmented sample grid so you can visually verify your data loaded correctly
Cell 9	Live training curves that update every epoch via clear_output
Cell 11	Per-class validation accuracy with colour-coded bar chart (red < 50%, orange < 80%, green ≥ 80%)
Cell 12	Normalised confusion matrix for the full val set
Cell 13	Lists all output files with sizes

Downloading outputs:

After training, download from /kaggle/working/runs/classify/:

• best.pt — copy to runs/classify/best.pt locally
• class_names.json — copy alongside best.pt

These two files are all you need to run 3_inference.py and api_server.py.

Option C — Fully automated via kaggle_train.py

Run the entire Kaggle pipeline — upload, train, download — from a single command with no browser needed:

python kaggle_train.py \
    --dataset_dir   crops_dataset \
    --notebook      train_classifier_kaggle.ipynb \
    --dataset_name  my-product-crops \
    --kernel_name   product-classifier-train \
    --output_dir    runs/classify

One-time setup (pick one option):

Option A — New token file (what Kaggle now issues — recommended)

Go to kaggle.com/settings/api → Create New Token. Kaggle shows you a command to run — paste it directly into your terminal:

mkdir -p ~/.kaggle && echo YOUR_TOKEN > ~/.kaggle/access_token && chmod 600 ~/.kaggle/access_token

Option B — Environment variable

export KAGGLE_API_TOKEN=your_token

Option C — Legacy kaggle.json (still supported)

Go to Settings → API → Create Legacy API Key → save the file:

mv ~/Downloads/kaggle.json ~/.kaggle/kaggle.json
chmod 600 ~/.kaggle/kaggle.json   # Linux/Mac only

The script auto-detects which credential you have — no configuration needed.

What the script does automatically:

Step	Action
1	Zips crops_dataset/ and uploads (or updates) it as a Kaggle Dataset
2	Patches DATA_DIR in the notebook to match the uploaded dataset path
3	Pushes the notebook as a Kaggle Kernel and triggers a GPU run
4	Polls kernel status every 30 s until complete or failed
5	Downloads best.pt, class_names.json, and plot PNGs into runs/classify/

Arguments:

Argument	Default	Description
--dataset_dir	crops_dataset	Local dataset folder to upload
--notebook	train_classifier_kaggle.ipynb	Notebook file to push
--dataset_name	product-crops	Kaggle dataset slug (lowercase, hyphens)
--kernel_name	product-classifier	Kaggle kernel slug
--output_dir	runs/classify	Where to save downloaded weights
--poll_interval	30	Seconds between status checks
--timeout	180	Max minutes to wait before giving up
--skip_upload	off	Skip zip+upload — reuse existing Kaggle dataset
--skip_push	off	Skip kernel push — just poll and download last run
--no_gpu	off	Run on CPU instead of T4 GPU
--public	off	Make dataset and kernel public

Useful combinations:

# Re-run training on an already uploaded dataset (faster — skips the zip/upload)
python kaggle_train.py --skip_upload --dataset_name my-product-crops --kernel_name product-classifier-train

# Just download the outputs of the last completed run (no upload, no push)
python kaggle_train.py --skip_upload --skip_push --kernel_name product-classifier-train

# Full run but with a fresh public kernel
python kaggle_train.py --dataset_name my-product-crops --kernel_name product-classifier-train --public

---

Diagnosing a stuck val loss

A val loss stuck above ln(num_classes) (e.g. > 3.13 for 23 classes) means the model is guessing randomly or confidently wrong. Common causes:

Symptom	Fix
Too few images per class (< 20)	Collect more data via auto_label.py on new images
Large imbalance between classes	WeightedRandomSampler is already enabled — check the imbalance report printed at startup
_ignore_ class in dataset	Remove it. Use --cls_conf threshold for rejection instead
Val loss high but train loss low	Classic overfitting — add --freeze_backbone or collect more data

Do not use an _ignore_ class. Throwing unrelated products into one folder creates an incoherent class that harms the entire model. Use --cls_conf to reject low-confidence predictions at inference time instead.

---

Step 5 — Run inference

Runs the full detect → classify pipeline on images, folders, videos, or webcam. Draws annotated bounding boxes and saves results.

python 3_inference.py \
    --detector_weights   detector/best.pt \
    --classifier_weights runs/classify/best.pt \
    --source             shelf_images/ \
    --det_conf           0.30 \
    --cls_conf           0.65 \
    --output_dir         inference_results \
    --show

Argument	Default	Description
--source	required	Image, folder, video, or webcam index (0)
--detector_weights	required	YOLOv8n .pt
--classifier_weights	required	Classifier best.pt
--det_conf	0.30	Detection threshold
--cls_conf	0.50	Min classifier confidence to draw a label
--det_iou	0.45	NMS IoU threshold
--padding	8	Extra pixels added around each crop before classification
--output_dir	inference_results	Where annotated images/video are saved
--show	off	Display live with cv2.imshow
--save_crops	off	Also save individual crop images
--no_save	off	Skip saving annotated output

Dynamic batch sizing

The classifier automatically probes available VRAM at startup and picks the largest safe batch size (with a 20% headroom margin). If an OOM occurs at runtime (e.g. an unusually dense frame with 260+ products), the batch is halved automatically and persisted for future frames. No manual tuning needed.

---

5. API Server

A REST API with a polling pattern for integration into other applications.

pip install fastapi uvicorn
uvicorn api_server:app --host 0.0.0.0 --port 8000 --workers 1

Configuration via environment variables:

DETECTOR_WEIGHTS=detector/best.pt
CLASSIFIER_WEIGHTS=runs/classify/best.pt
DET_CONF=0.25
CLS_CONF=0.50

Endpoints

POST /jobs — Submit a job

{
  "image": "<base64-encoded image>",
  "interested_classes": ["cola_can", "pepsi_can"],
  "cls_conf": 0.65
}

interested_classes filters the results to only those classes. Send an empty list [] to return all detected products.

Returns immediately:

{ "job_id": "550e8400-e29b-41d4-a716-446655440000" }

GET /jobs/{job_id} — Poll for results

Call every ~3 seconds until status is "done" or "failed".

{
  "status": "processing",
  "progress": 50,
  "results": null
}

When done:

{
  "status": "done",
  "progress": 100,
  "results": {
    "annotated_image": "<base64 JPEG>",
    "counts": {
      "cola_can": 3,
      "pepsi_can": 1
    },
    "detections": [
      { "class": "cola_can", "confidence": 0.91, "bbox": [120, 45, 210, 180] },
      { "class": "cola_can", "confidence": 0.87, "bbox": [230, 48, 318, 182] },
      { "class": "pepsi_can", "confidence": 0.79, "bbox": [340, 51, 428, 185] }
    ]
  }
}

Progress stages:

Progress	Stage
5	Image decoded
10	Detection started
30	Detection done
50	Crops extracted
75	Classification done
90	Image annotated
100	Done

GET /health — Server health check

{
  "status": "ok",
  "device": "cuda",
  "classes": ["cola_can", "pepsi_can", "..."],
  "active_jobs": 2
}

GET /classes — List available classes

{ "classes": ["cola_can", "pepsi_can", "lays_chips", "..."] }

---

6. Script Reference

Script	Purpose	Inputs	Outputs
1_generate_crop_dataset.py	Detect & crop (no classifier)	shelf images	data/unknown/*.jpg
auto_label.py	Detect + auto-classify + browser review	shelf images + both models	data/<class>/*.jpg
1b_split_dataset.py	Stratified train/val/test split	data/	crops_dataset/
balance_and_augment.py	Balance classes + augment	crops_dataset/train/	augmented images in-place
kaggle_train.py	Automate Kaggle upload + train + download	crops_dataset/ + notebook	runs/classify/best.pt
2_train_classifier.py	Train EfficientNet classifier	crops_dataset/	runs/classify/best.pt
3_inference.py	End-to-end detect + classify	images / video / webcam	annotated images/video
api_server.py	REST polling API	—	JSON + base64 annotated image
train_classifier_kaggle.ipynb	Kaggle training notebook	Kaggle dataset	best.pt + plots

---

7. Troubleshooting

FileNotFoundError: No images found in: 01.jpg You passed a file path that does not exist relative to your working directory. Use the full path or cd into the correct folder first.

OverflowError: Python integer 276 out of bounds for uint8 This was a known bug (HSV hue > 179) — already fixed in the current 3_inference.py.

Val loss stuck at ~5 during training See Diagnosing a stuck val loss above.

CUDA out of memory during inference The dynamic batch sizer handles this automatically by halving the batch and retrying. If it keeps happening, your crops may be very large — reduce --padding or --img_size.

CUDA out of memory during training Reduce --batch_size. Start at 32 and halve until it fits.

Browser does not open automatically after auto_label.py Open http://localhost:5000 manually.

Classifier only predicts one class Almost always class imbalance. Check the imbalance report printed during build_loaders. The WeightedRandomSampler should compensate, but if one class has 10× more images, collect more data for the minority classes.

---

8. Tips & Best Practices

Data collection

• Aim for ≥ 50 training images per class before expecting good results.
• Vary lighting, angles, partial occlusion, and zoom levels in your source images.
• Run auto_label.py on new batches of images regularly — the dataset grows incrementally and the model improves each iteration.

Labelling

• Use the confidence slider in the review UI to start reviewing high-confidence crops first (> 0.8) — these are almost always correct and can be bulk-confirmed quickly.
• Filter the sidebar to one class at a time and use Confirm all visible — scanning one class at a time is much faster than random-order review.
• Never put unrecognised products into a catch-all class. Leave them in _unreviewed_/ or reject them. Use --cls_conf to suppress uncertain predictions at inference time.

Training

• Start with --freeze_backbone if you have fewer than 50 images per class. Once you have more data, retrain without it.
• Use the Kaggle notebook for free T4 GPU access — it includes a diagnostic cell that checks class counts and imbalance before training starts.
• efficientnet_b0 is the best default — fast, accurate, small. Only upgrade to efficientnet_b2 if B0 accuracy plateaus and you have plenty of data.

Iterative improvement loop

Shoot new shelf photos
       ↓
auto_label.py  (detect + auto-classify)
       ↓
Review UI  (confirm / fix / reject)
       ↓
1b_split_dataset.py  (re-split the grown dataset)
       ↓
balance_and_augment.py  (equalise class counts, generate augmented copies)
       ↓
2_train_classifier.py  (local)  OR  kaggle_train.py  (automated Kaggle)
       ↓
3_inference.py / api_server.py  (deploy updated model)
       ↓
     repeat

Each iteration your classifier gets better, which means the auto-labelling in the next iteration needs less manual correction.

---

Per-Class Accuracy	Class Distribution
Confusion Matrix	Training Curves
