Module: Viewport

Overview

Viewports consume a displaySet and display/allow the user to interact with data. An extension can register a Viewport Module by defining a getViewportModule method that returns a React component. Currently, we use viewport components to add support for:

• 2D Medical Image Viewing (cornerstone ext.)
• Structured Reports as SR (DICOM SR ext.)
• Structured Reports as HTML (DICOM html ext.)
• Encapsulated PDFs as PDFs (DICOM pdf ext.)
• Whole Slide Microscopy Viewing (whole slide ext.)
• etc.

The general pattern is that a mode can define which Viewport to use for which specific SOPClassHandlerUID, so if you want to fork just a single Viewport component for a specialized mode, this is possible.

// displaySet, viewportIndex, dataSource
const getViewportModule = () => {
  const wrappedViewport = props => {
    return (
      <ExampleViewport
        {...props}
        onEvent={data => {
          commandsManager.runCommand('commandName', data);
        }}
      />
    );
  };

  return [{ name: 'example', component: wrappedViewport }];
};

Example Viewport Component

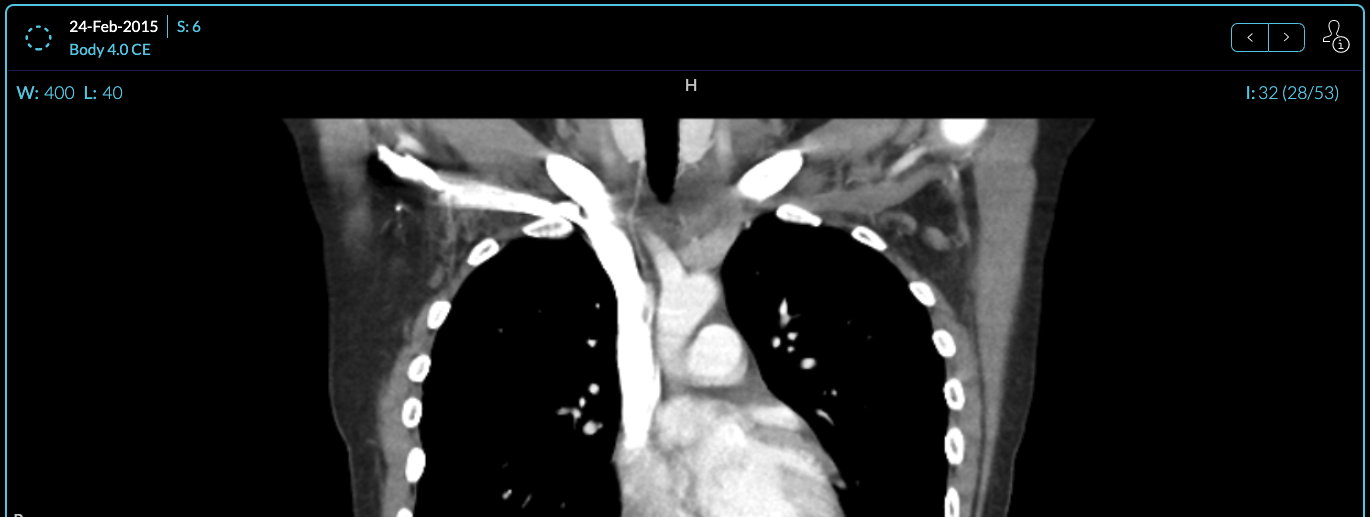

A simplified version of the tracked CornerstoneViewport is shown below, which creates a cornerstone viewport and and action bar on top of it.

function TrackedCornerstoneViewport({
  children,
  dataSource,
  displaySet,
  viewportIndex,
  servicesManager,
  extensionManager,
  commandsManager,
}) {
  const renderViewport = () => {
    const { component: Component } = extensionManager.getModuleEntry(
      'org.ohif.cornerstone.viewportModule.cornerstone'
    )
    return (
      <Component
        onElementEnabled={onElementEnabled}
        element={element}
        {...props}
      ></Component>
    )
  }

  return (
    <>
      <ViewportActionBar onDoubleClick onSeriesChange />
      <div className="relative flex flex-row w-full h-full overflow-hidden">
        {renderViewport()}
      </div>
    </>
  )
}

@ohif/viewer

Viewport components are managed by the ViewportGrid Component. Which Viewport component is used depends on:

• Hanging Protocols
• The Layout Configuration
• Registered SopClassHandlers

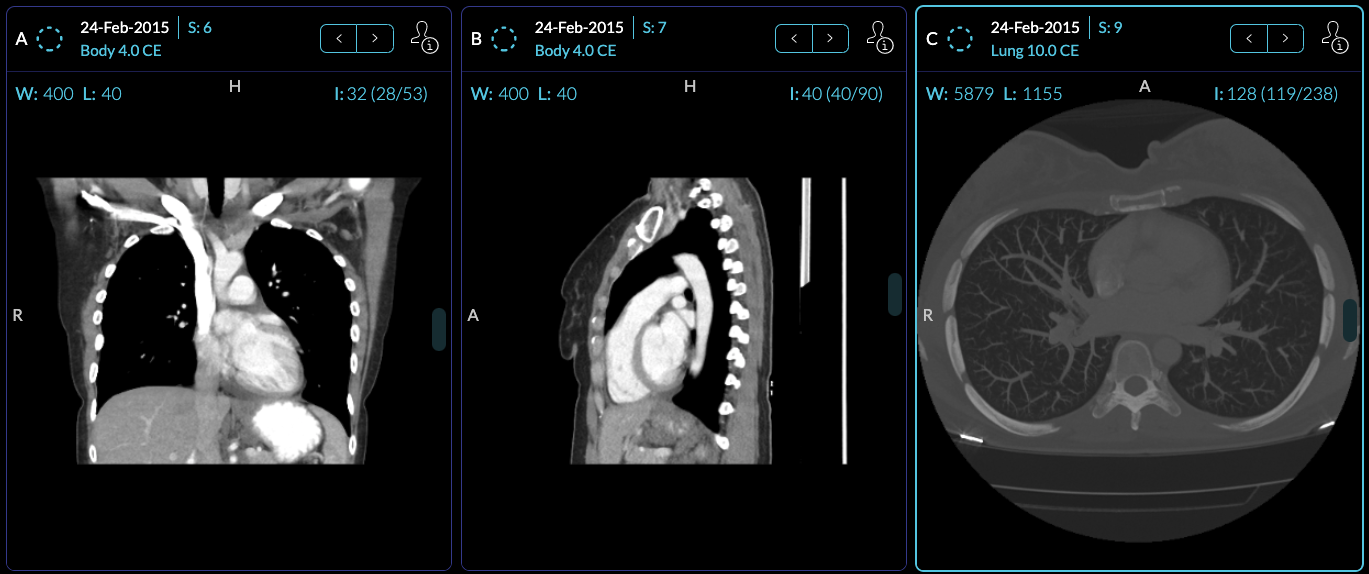

An example of three cornerstone Viewports
