Static DICOMweb Files for Enhanced Performance

This section describes how to generate and serve static DICOMweb files, significantly improving the performance of your OHIF Viewer setup. These files are pre-processed and compressed, minimizing storage space and reducing serving time to the bare minimum (disk read and HTTP stream write).

Static-DICOMWeb Project

The core tool for this process is the static-wado project, available on GitHub:

This project contains two main components:

static-wado-creator: Converts raw DICOM files into a DICOMweb-compliant directory structure, optimizing them for efficient serving.
static-wado-webserver: A simple web server specifically designed to serve the generated static DICOMweb files.

Prerequisites

Node.js and npm (or yarn) installed on your system.

Installation

Clone the Repository:

git clone https://github.com/RadicalImaging/Static-DICOMWeb
cd Static-DICOMWeb

Install Dependencies:
```
yarn install
```

Generating Static DICOMweb Files

Prepare your DICOM data: Organize your DICOM files into a directory. For example /Users/alireza/dicom/test-static-script/ACRIN-CT.
Convert to DICOMweb Structure: Use the mkdicomweb.js script from the static-wado-creator package to create the DICOMweb directory:
```
node packages/static-wado-creator/bin/mkdicomweb.js '/Users/alireza/dicom/test-static-script/ACRIN-CT' -o '/Users/alireza/dicom/test-static-script/output'
```
- Replace:
  - /Users/alireza/dicom/test-static-script/ACRIN-CT with the path to your directory of DICOM files.
  - /Users/alireza/dicom/test-static-script/output with your desired output directory for the DICOMweb structure.

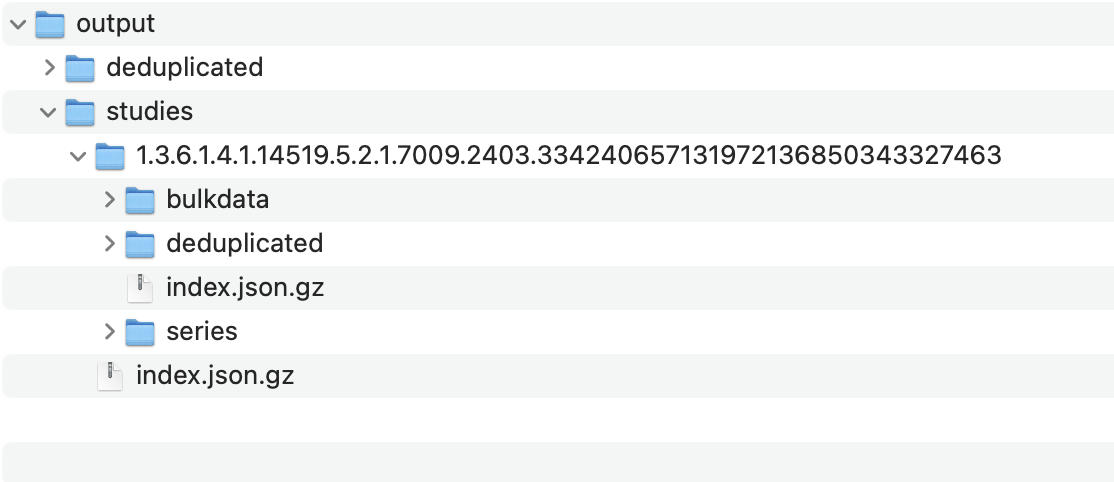

This command will generate a directory structure similar to this in your output location:

Serving Static Files with the Web Server

Start the Server:

Run the dicomwebserver.mjs script from the static-wado-webserver package, specifying the port and the DICOMweb directory:
```
node packages/static-wado-webserver/bin/dicomwebserver.mjs -p 3001 -o /Users/alireza/dicom/test-static-script/output
```
- -p 3001: Sets the server to listen on port 3001. You can change this if needed.
- -o /Users/alireza/dicom/test-static-script/output: Specifies the path to your generated DICOMweb directory.
:::info The -p (port) and -o (output directory) flags are used to configure the server. :::

Running OHIF Viewer with Static Data

Use the local_static.js Configuration:

Start the OHIF Viewer in development mode using the provided local_static.js configuration file:
```
yarn dev:static
```
Configuration Details:

The local_static.js configuration file is pre-configured to point to:
```
qidoRoot: 'http://localhost:3001/dicomweb',
wadoRoot: 'http://localhost:3001/dicomweb',
```
This matches the default port (3001) used by the static-wado-webserver.

:::info If you change the port or output directory when running the static-wado-webserver, you must also update the qidoRoot and wadoRoot values in your local_static.js configuration file accordingly to ensure the OHIF Viewer can access the data. :::
