Module: Viewport
An extension can register a Viewport Module by providing a getViewportModule()
method that returns a React Component. The React component will receive the
following props:
children: PropTypes.arrayOf(PropTypes.element)
studies: PropTypes.object,
displaySet: PropTypes.object,
viewportData: PropTypes.object, // { studies, displaySet }
viewportIndex: PropTypes.number,
children: PropTypes.node,
customProps: PropTypes.object

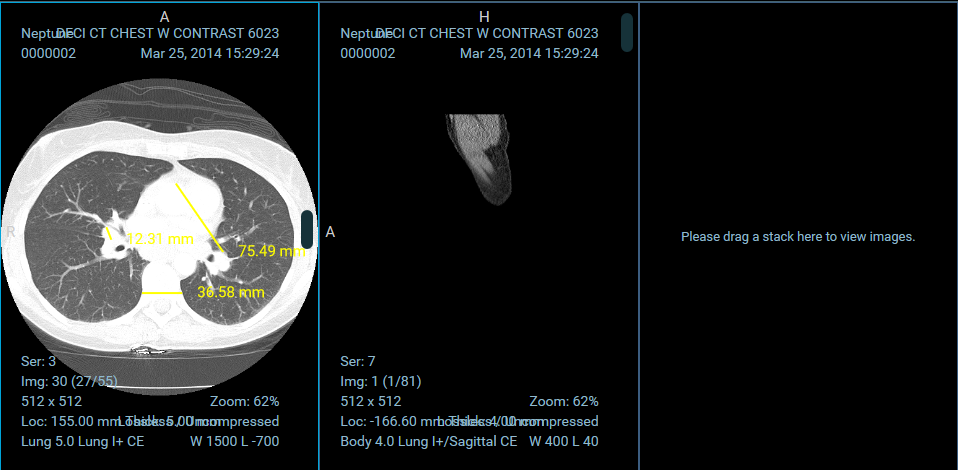

Viewport components are managed by the ViewportGrid Component. Which Viewport
component is used depends on:
- The Layout Configuration
- Registered SopClassHandlers
- The SopClassUID for visible/selected datasets
For a complete example implementation, check out the OHIFCornerstoneViewport.
