OHIF Command Line Interface

OHIF-v3 architecture has been re-designed to enable building applications that are easily extensible to various use cases (Modes) that behind the scene would utilize desired functionalities (Extensions) to reach the goal of the use case. Now, the question is how to create/remove/install/uninstall an extension and/or mode?

You can use the cli script that comes with the OHIF monorepo to achieve these goals.

:::note Info In the long-term, we envision our cli tool to be a separate installable package that you can invoke anywhere on your local system to achieve the same goals. In the meantime, cli will remain as part of the OHIF monorepo and needs to be invoked using the yarn command. :::

CLI Installation

You don't need to install the cli currently. You can use yarn to invoke its commands.

Commands

:::note Important All commands should run from the root of the monorepo. :::

There are various commands that can be used to interact with the OHIF-v3 CLI. If you run the following command, you will see a list of available commands.

yarn run cli --help

which will output

OHIF CLI

Options:
  -V, --version                          output the version number
  -h, --help                             display help for command

Commands:
  create-extension                       Create a new template extension
  create-mode                            Create a new template Mode
  add-extension <packageName> [version]  Adds an ohif extension
  remove-extension <packageName>         removes an ohif extension
  add-mode <packageName> [version]       Removes an ohif mode
  remove-mode <packageName>              Removes an ohif mode
  link-extension <packageDir>            Links a local OHIF extension to the Viewer to be used for development
  unlink-extension <extensionName>       Unlinks a local OHIF extension from the Viewer
  link-mode <packageDir>                 Links a local OHIF mode to the Viewer to be used for development
  unlink-mode <extensionName>            Unlinks a local OHIF mode from the Viewer
  list                                   List Added Extensions and Modes
  search [options]                       Search NPM for the list of Modes and Extensions
  help [command]                         display help for command

As seen there are commands for you such as: create-extension, create-mode, add-extension, remove-extension, add-mode, remove-mode, link-extension, unlink-extension, link-mode, unlink-mode, list, search, and help. Here we will go through each of the commands and describe them.

create-mode

If you need to create a new mode, you can use the create-mode command. This command will create a new mode template in the directory that you specify. The command will ask you couple of information/questions in order to properly create the mode metadata in the package.json file.

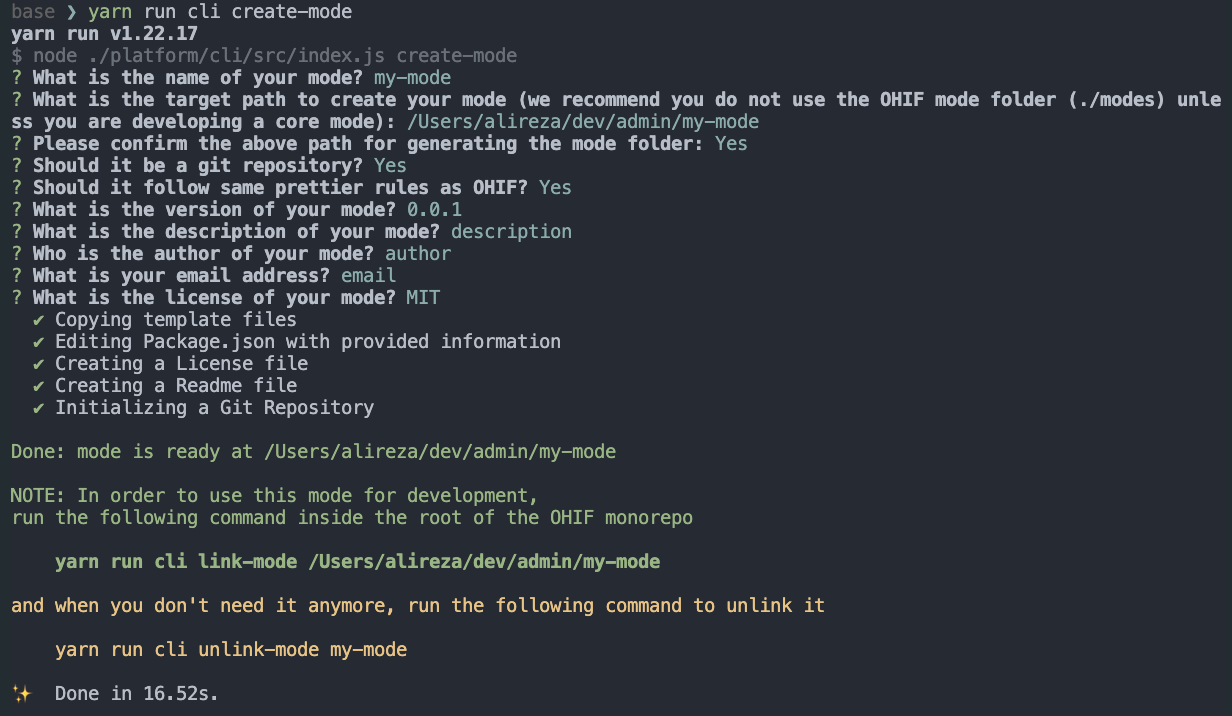

yarn run cli create-mode

Note 1: Some questions have a default answer, which is indicated inside the parenthesis. If you don't want to answer the question, just hit enter. It will use the default answer.

Note 2: As you see in the questions, you can initiate a git repository for the new mode right away by answering Y (default) to the question.

Note 3: Finally, as indicated by the green lines at the end, create-mode command only create the mode template. You will need to link the mode to the Viewer in order to use it. See the link-mode command.

If we take a look at the directory that we created, we will see the following files:

create-extension

Similar to the create-extension command, you can use the create-extension command to create a new extension template. This command will create a new extension template in the directory that you specify the path.

yarn run cli create-extension

Note: again similar to the create-extension command, you need to manually link the extension to the Viewer in order to use it. See the link-mode command.

link-extension

link-extension command will link a local OHIF extension to the Viewer. This command will utilize yarn link to achieve so.

yarn run cli link-extension <extensionDir>

unlink-extension

There might be situations where you want to unlink an extension from the Viewer after some developments. unlink-extension command will do so.

ohif-cli unlink-extension <extensionName>

link-mode

Similar to the link-extension command, link-mode command will link a local OHIF mode to the Viewer.

yarn run cli link-mode <modeDir>

unlink-mode

Similar to the unlink-extension command, unlink-mode command will unlink a local OHIF mode from the Viewer.

ohif-cli unlink-mode <modeName>

add-mode

OHIF is a modular viewer. This means that you can install (add) different modes to the viewer if they are published online . add-mode command will add a new mode to the viewer. It will look for the mode in the NPM registry and installs it. This command will also add the extension dependencies that the mode relies on to the Viewer (if specified in the peerDependencies section of the package.json).

:::note Important cli will validate the npm package before adding it to the Viewer. An OHIF mode should have ohif-mode as one of its keywords. :::

Note: If you don't specify the version, the latest version will be used.

yarn run cli add-mode <packageName> [version]

For instance @ohif-test/mode-clock is an example OHIF mode that we have published to NPM. This mode basically has a panel that shows the clock :)

We can add this mode to the Viewer by running the following command:

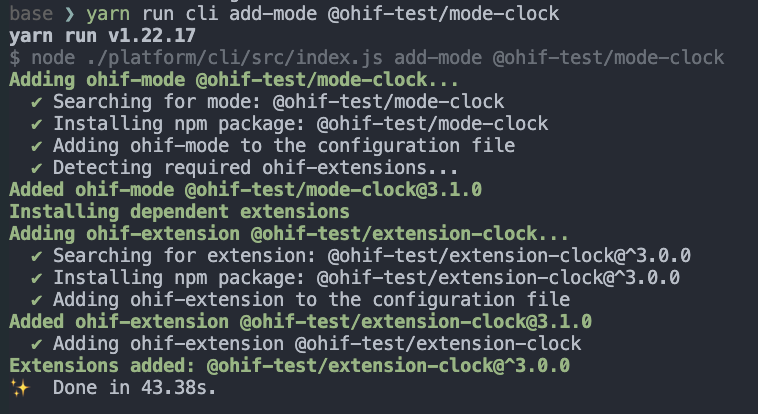

yarn run cli add-mode @ohif-test/mode-clock

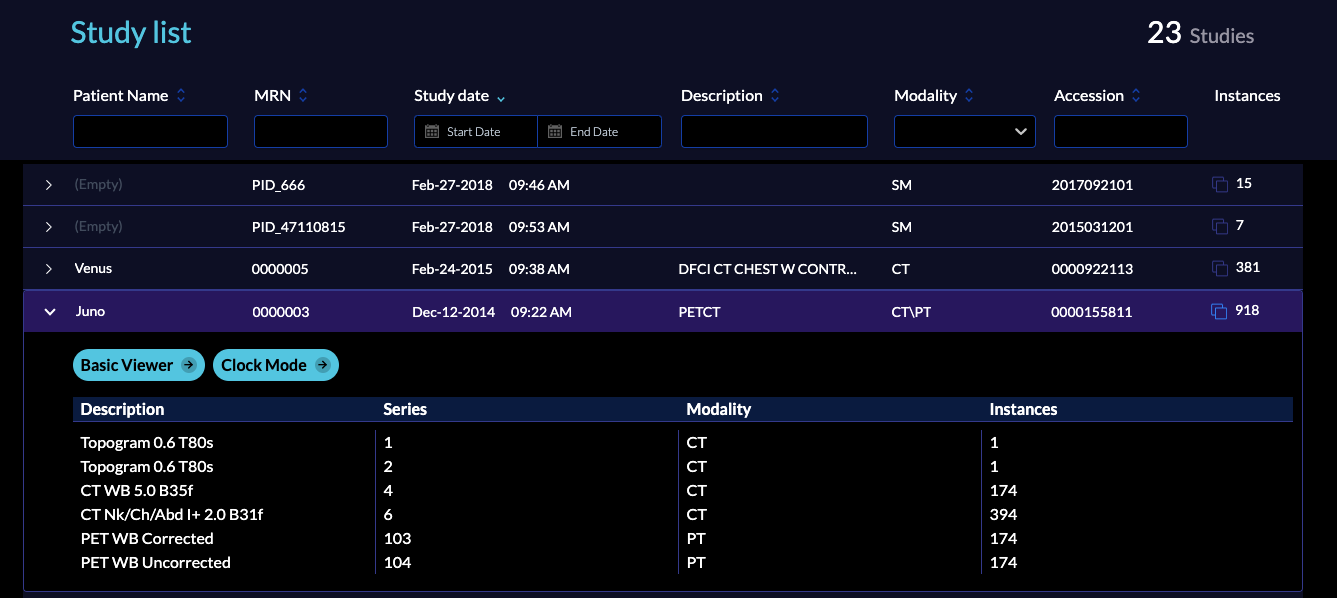

After installation, the Viewer has a new mode!

Note: If the mode has an extension peerDependency (in this case @ohif-test/extension-clock), cli will automatically add the extension to the Viewer too.

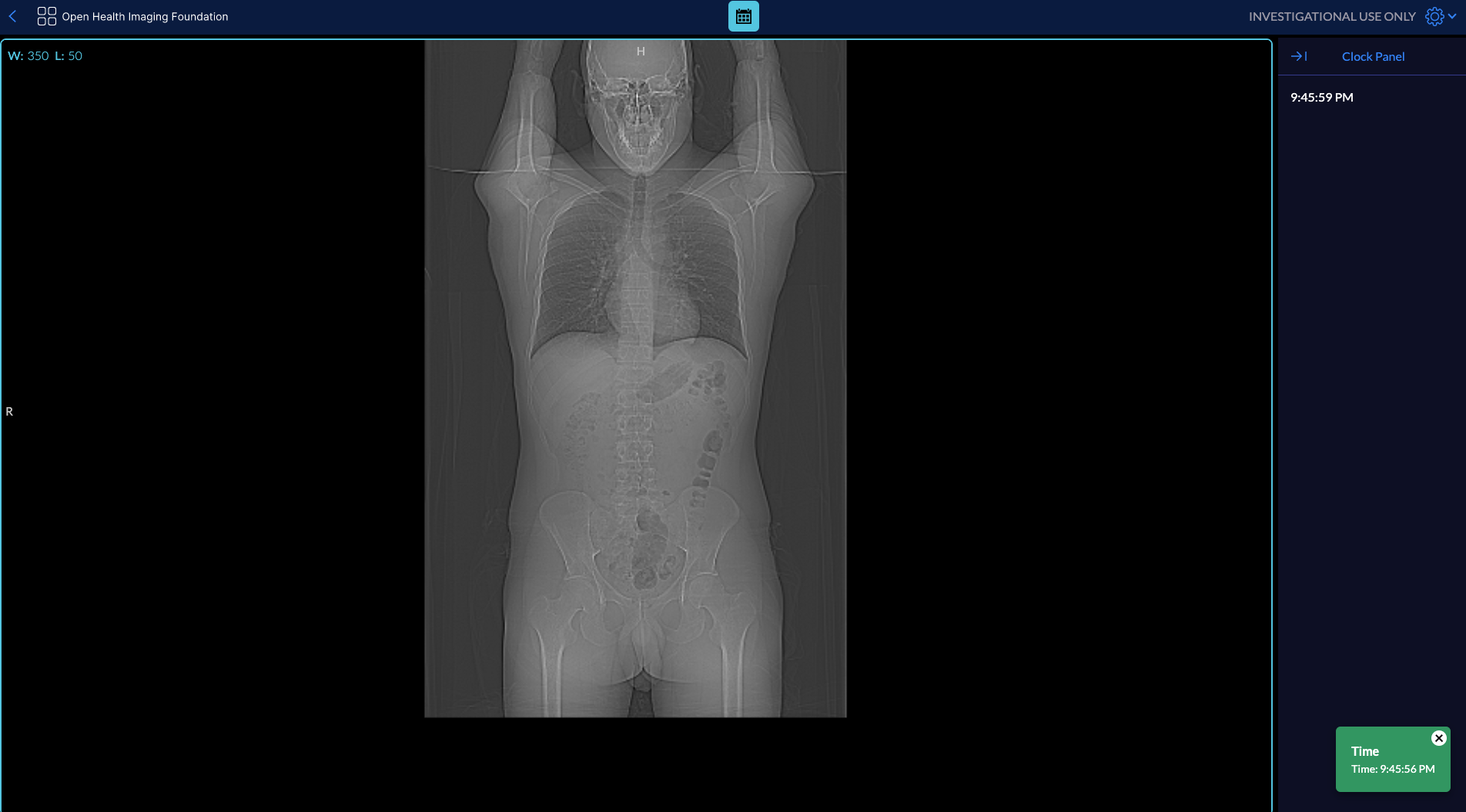

The result

add-extension

This command will add an OHIF extension to the Viewer. It will look for the extension in the NPM registry and install it.

yarn run cli add-extension <packageName> [version]

remove-mode

This command will remove the mode from the Viewer and also remove the extension dependencies that the mode relies on from the Viewer.

yarn run cli remove-mode <packageName>

remove-extension

Similar to the remove-mode command, this command will remove the extension from the Viewer.

yarn run cli remove-extension <packageName>

list

list command will list all the installed extensions and modes in the Viewer. It uses the PluginConfig.json file to list the installed extensions and modes.

yarn run cli list

an output would look like this:

search

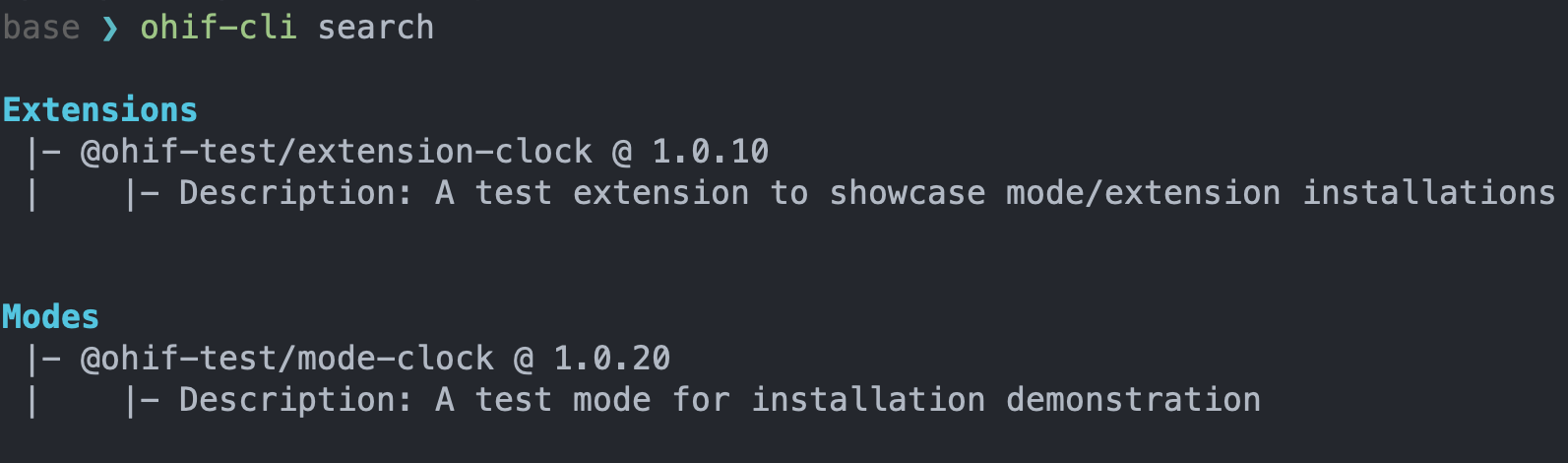

Using search command, you can search for OHIF extensions and modes in the NPM registry. This tool can accept a --verbose flag to show more information about the results.

yarn run cli search [--verbose]

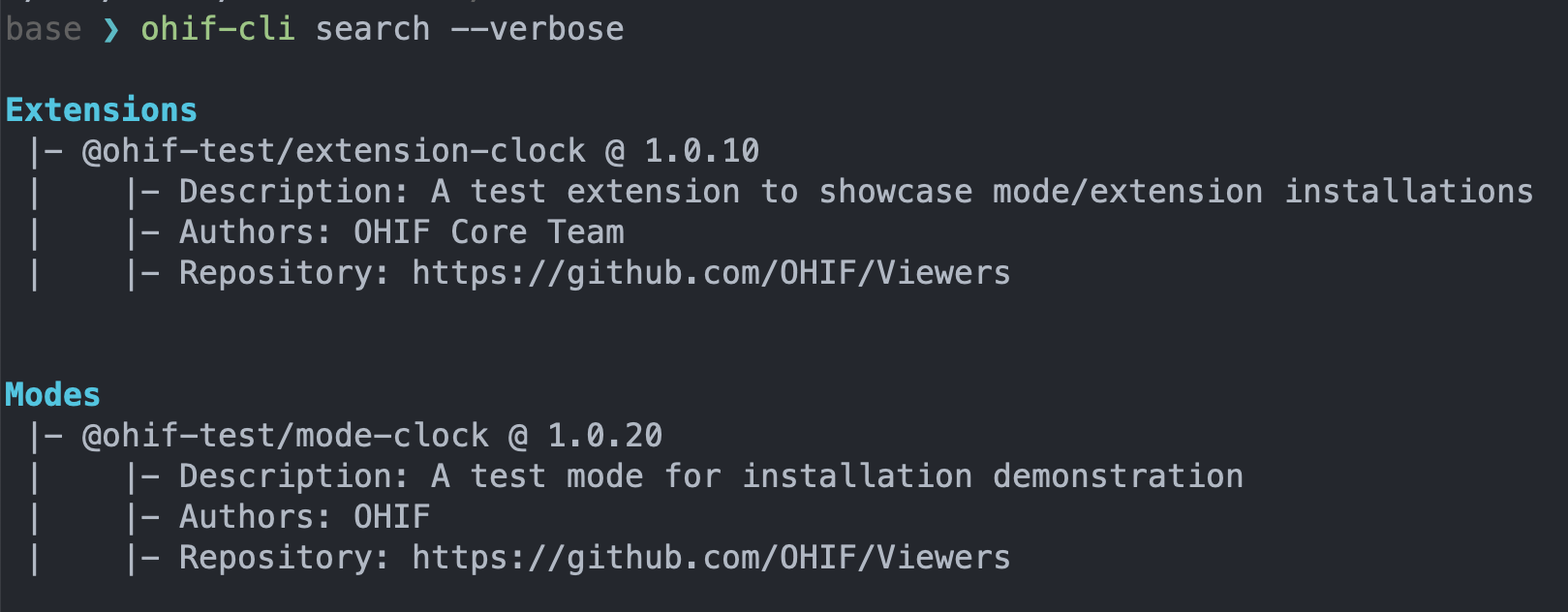

with the verbose flag ohif-cli search --verbose you will achieve the following output:

PluginConfig.json

To make all the above commands work, we have created a new file called PluginConfig.json which contains the information needed to run the commands. You don't need to (and should not) edit/update/modify this file as it is automatically generated by the CLI. You can take a look at what this file contains by going to platform/viewer/PluginConfig.json in your project's root directory. In short, this file tracks and stores all the extensions/modes and the their version that are currently being used by the viewer.
