Extensions

Extensions add new functionality to the viewer by registering one or more modules. They go one step further than configuration in that they allow us to inject custom React components, so long as they adhere to the module's interface. This can be something as simple as adding a new button to the toolbar, or as complex as a new viewport capable of rendering volumes in 3D.

Overview
Modules
- Viewport
- Toolbar
- SOP Class Handler
- Panel
- Commands
- Hotkeys

Overview

At a glance, an extension is a class or object that has a getExtensionId() method, and one or more "module" methods. You can find an abbreviated extension below, or view the source of our cornerstone viewport extension.

class myCustomExtension {

    /** Required */
    getExtensionId: () => 'my-extension-id';

    /** React component that receives props from ConnectLayoutManager
     *  If more than one viewport module is registered, SopClassHandler
     *  is used to help determine which component is used */
    getViewportModule: () => reactViewportComponent;

    /** React component that adds buttons/behavior to the viewer Toolbar */
    getToolbarModule: () => reactToolbarComponent;

    /** Provides a whitelist of SOPClassUIDs the viewport is capable of rendering.
     *  Can modify default behavior for methods like `getDisplaySetFromSeries` */
    getSopClassHandler: () => {
        id: 'some-other-unique-id',
        type: PLUGIN_TYPES.SOP_CLASS_HANDLER,
        sopClassUids: ['string'],
        getDisplaySetFromSeries: (series, study, dicomWebClient, authorizationHeaders) => ...
    };

    // Not yet used
    getPanelModule: () => null;
}

Modules

There are a few different kinds of modules. Each kind of module allows us to extend the viewer in a different way, and provides a consistent API for us to do so. You can find a full list of the different types of modules in ohif-core. Information on each type of module, it's API, and how we determine when/where it should be used is included below:

Viewport

An extension can register a Viewport Module by providing a getViewportModule() method that returns a React Component. The React component will receive the following props:

children: PropTypes.arrayOf(PropTypes.element)
studies: PropTypes.object,
displaySet: PropTypes.object,
viewportData: PropTypes.object, // { studies, displaySet }
viewportIndex: PropTypes.number,
children: PropTypes.node,
customProps: PropTypes.object

Viewport components are managed by the LayoutManager. Which Viewport component is used depends on:

The Layout Configuration
Registered SopClassHandlers
The SopClassUID for visible/selected datasets

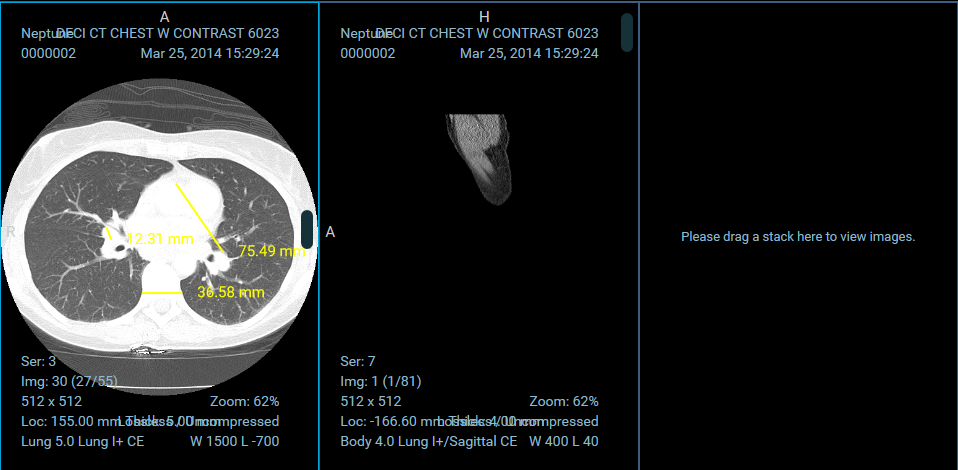

An example of three Viewports

For a complete example implementation, check out the OHIFCornerstoneViewport.

An extension can register a Toolbar Module by providing a getToolbarModule() method that returns a React Component. The component does not receive any props. If you want to modify or react to state, you will need to connect to the redux store.

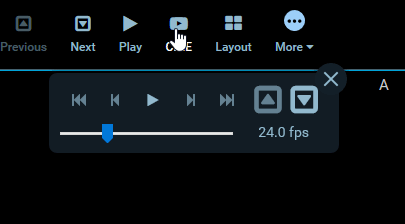

A toolbar extension example

Toolbar components are rendered in the ToolbarRow component.

For a complete example implementation, check out the OHIFCornerstoneViewport's Toolbar Module.

SopClassHandler

...

Panel

The panel module is not yet in use.

Commands

...

Hotkeys

...

Registering Extensions

Extensions are registered for the application at startup. The ExtensionManager, exposed by ohif-core, registers a list of extensions with our application's store. Each module provided by the extension becomes available via state.plugins.availablePlugins, and consists of three parts: id, type (PLUGIN_TYPE), and the return value of the module method.

In a future version, we will likely expose a way to provide the extensions you would like included at startup.

app.js

import { createStore, combineReducers } from 'redux';
import OHIF from 'ohif-core';
import OHIFCornerstoneExtension from 'ohif-cornerstone-extension';

const combined = combineReducers(OHIF.redux.reducers);
const store = createStore(combined);
const extensions = [new OHIFCornerstoneExtension()];

// Dispatches the `addPlugin` action to the store
// Adding extension modules to `state.plugins.availablePlugins`
ExtensionManager.registerExtensions(store, extensions);

OHIF Maintained Extensions

A small number of powerful extensions for popular use cases are maintained by OHIF. They're co-located in the OHIF/Viewers repository, in the top level extensions/ directory.

{% include "./_maintained-extensions-table.md" %}

5.4 KiB Raw Blame History
