Module: Toolbar

An extension can register a Toolbar Module by defining a getToolbarModule method. This module is commonly used to define:

• Toolbar buttons
• Nested toolbar menus
• Custom components

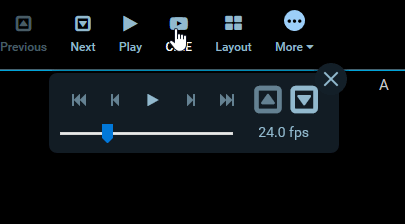

Example toolbar button using the Dialog Service to show CINE controls.

Example Toolbar Module

The Toolbar Module should return an array of definitions and a defaultContext. There are currently a few different variations of definitions, each one is detailed further down.

export default {
  id: 'example-toolbar-module',

  /**
   * @param {object} params
   * @param {ServicesManager} params.servicesManager
   * @param {CommandsManager} params.commandsManager
   */
  getToolbarModule({ servicesManager, commandsManager }) {
    return {
      definitions: [
        /* Array of definitions */
      ],
      defaultContext: ['ROUTE:VIEWER'],
    };
  },
};

Button Definitions

The simplest definition has the following properties:

{
  id: 'StackScroll',
  label: 'Stack Scroll',
  icon: 'bars',
  type: 'setToolActive',
  commandName: 'setToolActive',
  commandOptions: { toolName: 'StackScroll' },
},

property	description	values
id	Unique string identifier for the definition	*
label	User/display friendly to show in UI	*
icon	A string name for an icon supported by the consuming application.	*
type	Used to determine the button's component and behavior	"setToolActive", "command"
commandName	(optional) The command to run when the button is used.	Any command registed by a CommandModule
commandOptions	(optional) Options to pass the target commandName	*
context	(optional) Overrides module's defaultContext	Array of string context names

Where a button with a type of setToolActive has an "active" styling applied when clicked; removing the active styling from all other buttons.

Nested Toolbar Menus

You can indicate that buttons should be grouped and nested in a submenu by including buttons property in a definition:

{
  id: 'More',
  label: 'More',
  icon: 'ellipse-circle',
  buttons: [
    {
      id: 'cstInvert',
      label: 'Invert',
      icon: 'circle',
      type: 'command',
      commandName: 'invertViewport',
    },
  ],
},

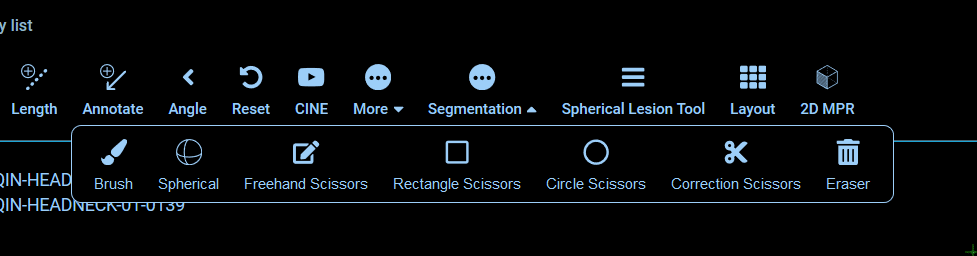

Example toolbar button demonstrating nested buttons.

Custom Components

The Toolbar Modules supports rendering custom components in place of the application's default. In place of the type, commandName, and commandOptions properties, we instead specify a CustomComponent.

{
  id: 'Custom',
  label: 'Custom',
  icon: 'custom-icon',
  CustomComponent: CustomToolbarComponent,
}

The CustomComponent components will receive the following props:

<CustomComponent
  parentContext="{parentContext}"
  toolbarClickCallback="{_handleToolbarButtonClick.bind(this)}"
  button="{button}"
  key="{button.id}"
  activeButtons="{activeButtonsIds}"
  isActive="{isActive}"
/>

Property	Type	Description
activeButtons	string[]	list of active buttons
button	object	its own definition object
key	string	React key prop
isActive	boolean	If current button is active
parentContext	?	The parent component's context?
toolbarClickCallback	func	Callback method for clicks
