OHIF Medical Imaging Viewer

The OHIF Viewer is a zero-footprint medical image viewer provided by the Open Health Imaging Foundation (OHIF). It is a configurable and extensible progressive web application with out-of-the-box support for image archives which support DICOMweb.

Read The Docs

Live Demo | Component Library

📰 Join OHIF Newsletter 📰

---

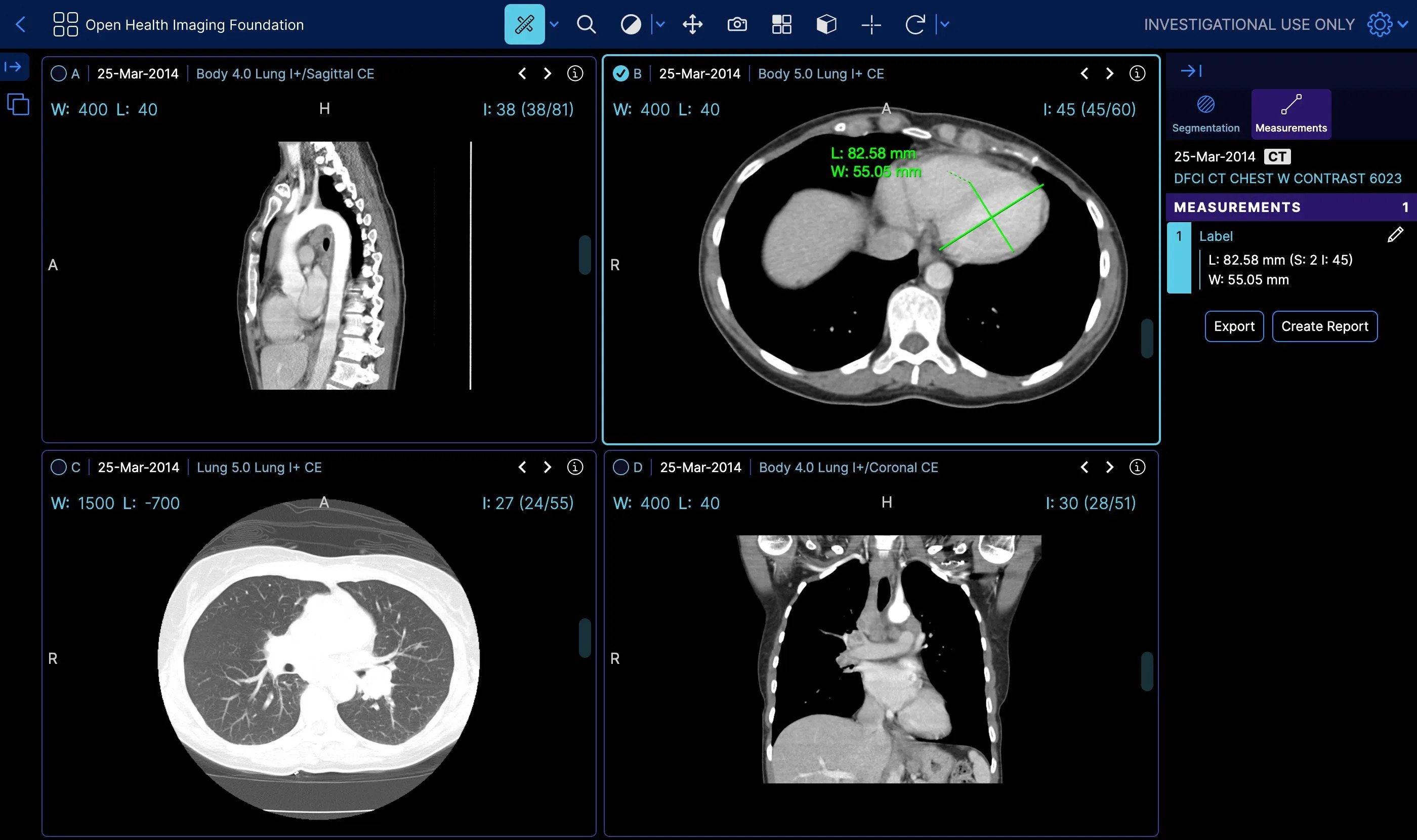

	Measurement Tracking	Demo
	Labelmap Segmentations	Demo

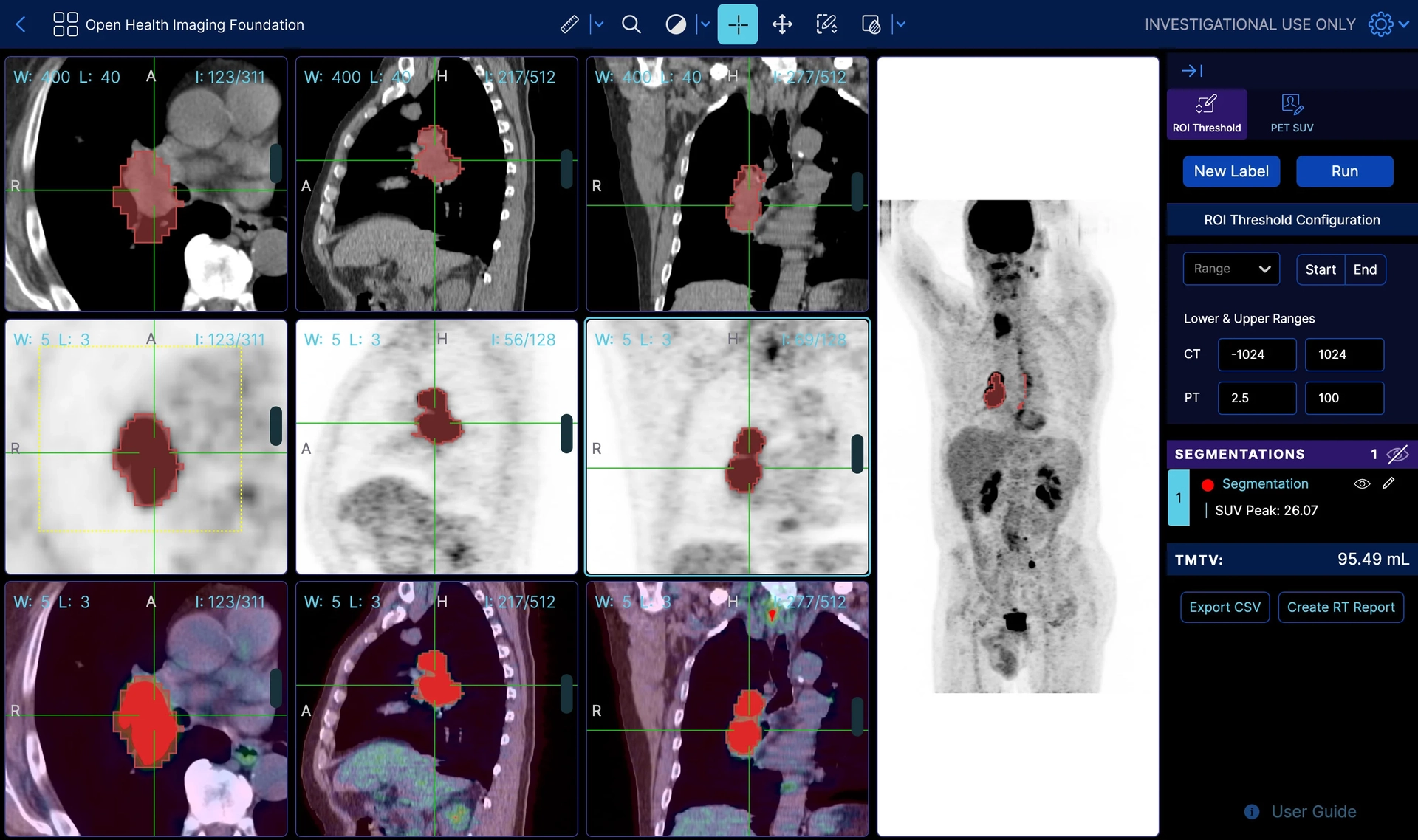

	Fusion and Custom Hanging protocols	Demo
	Slide Microscopy	Demo
	Volume Rendering	Demo

About

The OHIF Medical Imaging Viewer is for viewing medical images. It can retrieve and load images from most sources and formats; render sets in 2D, 3D, and reconstructed representations; allows for the manipulation, annotation, and serialization of observations; supports internationalization, OpenID Connect, offline use, hotkeys, and many more features.

Almost everything offers some degree of customization and configuration. If it doesn't support something you need, we accept pull requests and have an ever improving Extension System.

Why Choose Us

Community & Experience

The OHIF Viewer is a collaborative effort that has served as the basis for many active, production, and FDA Cleared medical imaging viewers. It benefits from our extensive community's collective experience, and from the sponsored contributions of individuals, research groups, and commercial organizations.

Built to Adapt

After more than 8-years of integrating with many companies and organizations, The OHIF Viewer has been rebuilt from the ground up to better address the varying workflow and configuration needs of its many users. All of the Viewer's core features are built using it's own extension system. The same extensibility that allows us to offer:

• 2D and 3D medical image viewing
• Multiplanar Reconstruction (MPR)
• Maximum Intensity Project (MIP)
• Whole slide microscopy viewing
• PDF and Dicom Structured Report rendering
• Segmentation rendering as labelmaps and contours
• User Access Control (UAC)
• Context specific toolbar and side panel content
• and many others

Can be leveraged by you to customize the viewer for your workflow, and to add any new functionality you may need (and wish to maintain privately without forking).

Support

• Report a Bug 🐛
• Request a Feature 🚀
• Ask a Question 🤗
• Slack Channel

For commercial support, academic collaborations, and answers to common questions; please use Get Support to contact us.

Developing

Branches

master branch - The latest dev (beta) release

• master - The latest dev release

This is typically where the latest development happens. Code that is in the master branch has passed code reviews and automated tests, but it may not be deemed ready for production. This branch usually contains the most recent changes and features being worked on by the development team. It's often the starting point for creating feature branches (where new features are developed) and hotfix branches (for urgent fixes).

Each package is tagged with beta version numbers, and published to npm such as @ohif/ui@3.6.0-beta.1

release branch - The latest stable release

This branch represents the latest stable version of the project that is considered ready for production. The code in this branch should be fully tested and vetted for release. Once the code in the master branch reaches a state where it's stable and ready to be released to users, we do a comprehensive code review and QA testing. Once the code is approved, we merge it into the release branch and tag a new release.

Each package is tagged with version numbers, and published to npm such as @ohif/ui@3.5.0

Note: master is always ahead of release branch. We publish both docker builds for beta and stable releases.

Here is a schematic representation of our development workflow:

Requirements

• Yarn 1.17.3+
• Node 16+
• Yarn Workspaces should be enabled on your machine:
  • yarn config set workspaces-experimental true

Getting Started

1. Fork this repository
2. Clone your forked repository
   • git clone https://github.com/YOUR-USERNAME/Viewers.git
3. Navigate to the cloned project's directory
4. Add this repo as a remote named upstream
   • git remote add upstream https://github.com/OHIF/Viewers.git
5. yarn install to restore dependencies and link projects

To Develop

From this repository's root directory:

# Enable Yarn Workspaces
yarn config set workspaces-experimental true

# Restore dependencies
yarn install

Commands

These commands are available from the root directory. Each project directory also supports a number of commands that can be found in their respective README.md and project.json files.

Yarn Commands	Description
Develop
dev or start	Default development experience for Viewer
test:unit	Jest multi-project test runner; overall coverage
Deploy
build*	Builds production output for our PWA Viewer

* - For more information on our different builds, check out our Deploy Docs

Project

The OHIF Medical Image Viewing Platform is maintained as a monorepo. This means that this repository, instead of containing a single project, contains many projects. If you explore our project structure, you'll see the following:

.
├── extensions               #
│   ├── _example             # Skeleton of example extension
│   ├── default              # basic set of useful functionalities (datasources, panels, etc)
│   ├── cornerstone       # image rendering and tools w/ Cornerstone3D
│   ├── cornerstone-dicom-sr # DICOM Structured Report rendering and export
│   ├── cornerstone-dicom-sr # DICOM Structured Report rendering and export
│   ├── cornerstone-dicom-seg # DICOM Segmentation rendering and export
│   ├── cornerstone-dicom-rt # DICOM RTSTRUCT rendering
│   ├── cornerstone-microscopy # Whole Slide Microscopy rendering
│   ├── dicom-pdf # PDF rendering
│   ├── dicom-video # DICOM RESTful Services
│   ├── measurement-tracking # Longitudinal measurement tracking
│   ├── tmtv # Total Metabolic Tumor Volume (TMTV) calculation
|

│
├── modes                    #
│   ├── _example             # Skeleton of example mode
│   ├── basic-dev-mode       # Basic development mode
│   ├── longitudinal         # Longitudinal mode (measurement tracking)
│   ├── tmtv       # Total Metabolic Tumor Volume (TMTV) calculation mode
│   └── microscopy          # Whole Slide Microscopy mode
│
├── platform                 #
│   ├── core                 # Business Logic
│   ├── i18n                 # Internationalization Support
│   ├── ui                   # React component library
│   ├── docs                 # Documentation
│   └── viewer               # Connects platform and extension projects
│
├── ...                      # misc. shared configuration
├── lerna.json               # MonoRepo (Lerna) settings
├── package.json             # Shared devDependencies and commands
└── README.md                # This file

Acknowledgments

To acknowledge the OHIF Viewer in an academic publication, please cite

Open Health Imaging Foundation Viewer: An Extensible Open-Source Framework for Building Web-Based Imaging Applications to Support Cancer Research

Erik Ziegler, Trinity Urban, Danny Brown, James Petts, Steve D. Pieper, Rob Lewis, Chris Hafey, and Gordon J. Harris

JCO Clinical Cancer Informatics, no. 4 (2020), 336-345, DOI: 10.1200/CCI.19.00131

Open-Access on Pubmed Central: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7259879/

or, for v1, please cite:

LesionTracker: Extensible Open-Source Zero-Footprint Web Viewer for Cancer Imaging Research and Clinical Trials

Trinity Urban, Erik Ziegler, Rob Lewis, Chris Hafey, Cheryl Sadow, Annick D. Van den Abbeele and Gordon J. Harris

Cancer Research, November 1 2017 (77) (21) e119-e122 DOI: 10.1158/0008-5472.CAN-17-0334

Note: If you use or find this repository helpful, please take the time to star this repository on Github. This is an easy way for us to assess adoption and it can help us obtain future funding for the project.

This work is supported primarily by the National Institutes of Health, National Cancer Institute, Informatics Technology for Cancer Research (ITCR) program, under a grant to Dr. Gordon Harris at Massachusetts General Hospital (U24 CA199460).

This project is tested with BrowserStack. Thank you for supporting open source

License

MIT © OHIF
